Bike, E-Bike, E-Bike Road

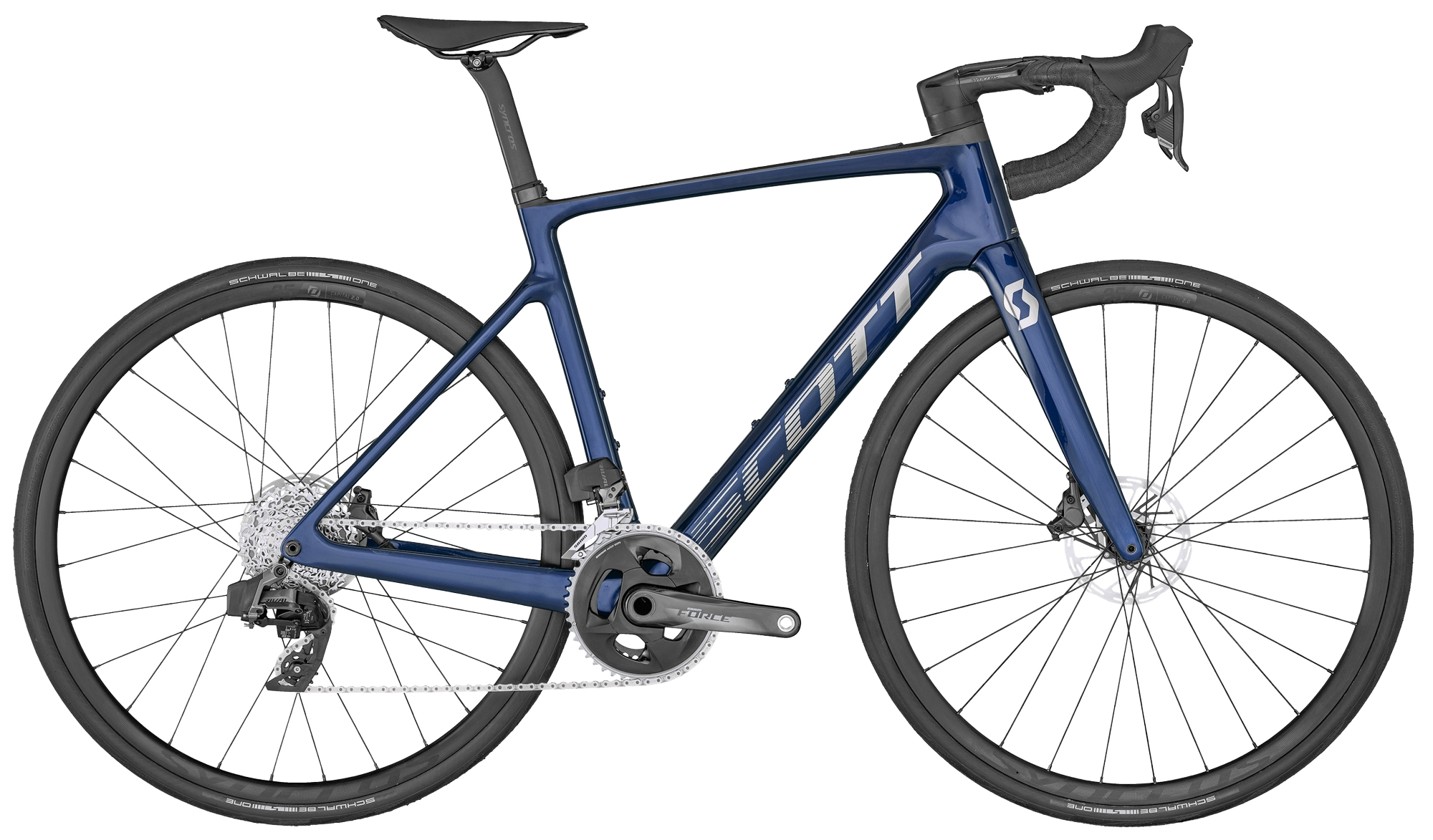

Scott Addict RC eRIDE 20

2.249,00 €

& Free Shipping

Size

Clear

SKU: N/A Categories: Bike, E-Bike, E-Bike Road Brand: Scott

Scott Addict eRIDE 20

When Scott developed the Addict eRIDE, the goal was clear: it should not just be good, but even better. The focus was on higher, longer and steeper climbs. So that riders can start even earlier and return later. Lightweight, powerful and just as reliable as the World Tour model. The Addict eRIDE is a real revelation in the world of cycling. Equipped with a Mahle hub motor with 50 Nm torque, a 250 Wh battery and the reliable electronic Rival eTap AXS shifting system from SRAM.

Features – Scott Addict eRIDE 20

Addict RC Disc HMX carbon frame
Addict eRIDE HMX fork
SRAM RIVAL eTap AXS 24 gears
Mahle motor hub drive 50Nm, max. torque 250Wh battery, total 435Wh with optional Mahle Range Exdener E185
Syncros Capital 2.0 25e Disc wheelset
Schwalbe One tires
Syncros components made from carbon/aluminum

Please note that no pedals are included in the scope of delivery!

Technologies

EVO-LAP technology
When manufacturing a Scott frame, the right choice of materials is crucial – 80% of the work is done. But the remaining 20% requires the greatest precision. That’s why Scott uses the highest quality carbon fibers on the market and combines them with specific processes such as FEA (Finite Element Analysis) software to optimally map the carbon layer structure.

With FEA, Scott can simulate various forces on a virtual frame model and adapt the design accordingly. This software enables the creation of complete virtual prototypes that take into account all physical phenomena from the real environment.

Thanks to EvoLap technology, Scott models the frame to optimize the surface area. Tube shapes are simulated using differently oriented carbon layers, the load distribution in different areas is tested and the results of different configurations are analyzed.

The extensive computer modelling has enabled Scott to optimize the carbon layers in all parts of the frame. Assembling the first prototypes resulted in a super light and compact frame, without sacrificing stiffness, comfort or impact resistance. The entire range benefits from EvoLap technology.

Manufacturer item no.: 286540052
EAN: 7615523332144
Model year: 2022
Manufacturer:
Scott Sports SA
Route du Crochet 11
1762 Givisiez
SwitzerlandPerson responsible in the EU:
SSG (Europe) Distribution Center SA
P.E.D. Zone C1 Rue du Kiell 60
6790 Aubange
Belgium
www.scott-sports.com/contact

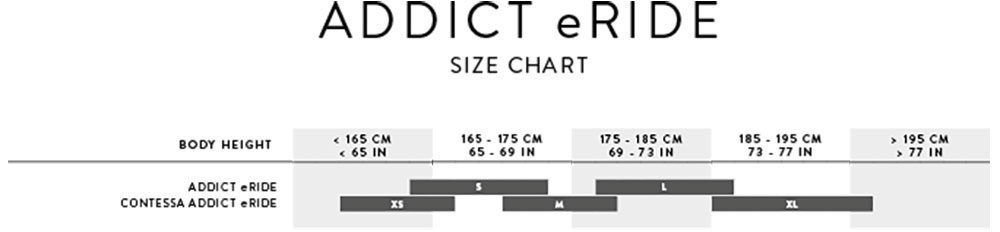

Size	XS49, S52, M54, L56, XL58

Specifications

Configuration

Frame:	Addict eRIDE Disc HMX ePerformance geometry / Replaceable Derailleur Hanger Fully Internal cable routing Range Extender Ready
Frame material:	Carbon
Wheel size:	28″
Speeds:	2 x 12
Colour:	stellar blue / gloss chrom
Fork:	Addict eRIDE HMX Flatmount Disc 1 1/4″-1 1/2″ Eccentric Carbon steerer
Brakes:	SRAM Paceline rotor 160/F and 160/R
Brake discs:	SRAM CenterLine XR rotor 160/F and 160/R
Brake levers:	SRAM RIVAL eTap AXS HRD Shift-Brake System
Headset:	Syncros Addict RC Integrated
Stem:	Syncros RR iC 1 1/4″, XS/49: 90mm; S/52: 100mm; M/54: 110mm; L/56: 120mm; XL/58: 120mm
Handlebar:	Syncros Creston 2.0 Compact Alloy
Saddle:	Syncros Belcarra Regular 2.0
Seatpost:	Syncros Duncan 1.0 Aero
Crankset:	SRAM RIVAL Crankset 46/33 T

Bottom bracket:	SRAM DUB PF ROAD 86.5
Rear derailleur:	SRAM RIVAL eTap AXS 24 Speed Electronic Shift System
Gear shifters:	SRAM RIVAL eTap AXS HRD Shift-Brake System
Front derailleur:	SRAM RIVAL eTap AXS Electronic Shift System
Cassette:	SRAM RIVAL XG1250 10-36 T
Chain:	SRAM Rival
Tyres:	Schwalbe ONE Race-Guard Fold 700x30C
Wheelset:	Syncros Capital 2.0 25e Disc 24 Front 12x100mmTA /32 Rear 12x142mmTA
Display:	Mahle One Bluetooth / Dedicated Smartphone app
Battery:	Mahle 36V-250Wh
Charger:	Mahle 100-240V-4A
Engine:	Mahle X20 Motor Hub drive 50Nm max Torque / EU: 25kmh / US: 20mph
Pedals:	not included
Maximum total weight allowed:	120 kg (body weight + bike + equipment)
Weight:	starting from 11.8 kg

Drivetrain

The new revolution is here: The Mahle X20 system is the lightest and most intelligent eBike rear hub system on the market

Mahle X20, the new benchmark in the SmartBike industry

Ultracompact, light and smart system that creates a full range of new riding possibilities while making eBikes look & feel indistinguishable from high performance bikes. The latest innovations create the best support at any cadence, whether racing at top speeds or climbing up a mountain. X20 is designed to drive the rider and the whole industry forward.

The subtlety of performance
WFull system integration and lowest system weight in the market makes the X20 system go completely unnoticed until you feel the 55Nm of torque.

You set the limits
New 236 Wh/350 Wh internal batteries which can be complemented with a 171 Wh Range Extender, delivering up to 200 Km Autonomy. Intelligent fast charging system up to 4A charging the battery up to 80% of its full capacity in less than 2 hours.

An alive system
The new compact Head Unit information system includes BT and ANT+ connectivity, brightness sensor and 3D accelerometer, combining everything you need to know in a single light line.

Everything you need
The new torque and cadence sensor in the bottom bracket allows the eBike to accurately read each watt of power you apply, giving the user the appropriate response thanks to AI and Machine Learning. The system learns from you and adapts to your needs and the environment at any given moment.

The lightest system on the market
With only 3.2 Kg of system weight, including drive unit, inner battery and head unit, the X20 System is the lightest eBike rear hub system on the market

Mahle X20 motor with 55 Nm

The lightest drive unit on the market
The crown jewel of the new X20 system that drove the whole industry forward. Lightweiht at only 1399 grams. It features the AMC system -Automatic Motor Connection, patent pending- which eliminates the need for motor cables and allows natural positioning of the wheel by attaching it via a standard 12 mm thru axle.

The subtlety of performance
The X20 drive unit with a torque of 55 Nm, compatible with the EU market (25 km/h) and the US market (20 km/h), has been developed and assembled in Europe to achieve maximum performance levels, completely eliminating air resistance when exceeding the maximum assisted speed without affecting the rider.

Always ready
Compatible with all freewheel standards and groupsets with up to 13 gears. The X20 drive unit has a new quick-change system for the freewheel, which makes maintenance easier and keeps the motor ready for use at all times.

New control unit
Knowing exactly what is happening in your eBike without compromising the design and riding experience is now a reality. Battery level, assistance power, warnings and notifications can be called up at a glance, allowing the rider to concentrate on what’s important: the ride.

AI & Machine Learning
The X20 system is the first system capable of processing the signals from all sensors and the rider’s movements and adapting the eBike’s response to the terrain and the user’s efforts and needs. It has machine learning technology to react in real time and AI for post-processing in the cloud.

You decide the ride
With its 55Nm, the X20 system will take you further. The power, acceleration and response of the system can be adjusted according to the level of assistance*. The torque and cadence sensor in the bottom bracket is a masterpiece that enables the integration of any groupset

Mahle X20 IX236Wh battery

Further, safer, more efficient, faster
The new batteries, iX2, iX3 and Range Extender, offer an assisted riding autonomy that can go beyond 140km and optimize consumption thanks to the new generation of integrated motor controls

Intelligent charging
The charging system is designed to provide information on the state of charge, update the system or adapt the charging current to the type and condition of the battery, significantly reducing charging times.

One step ahead
The new generation of range extenders with 171Wh and a weight of only 1.1kg increases the autonomy of the eBike by 50% to 70% and offers the option of setting the operating mode and discharge priority
