Bike, E-Bike, E-Bike Road

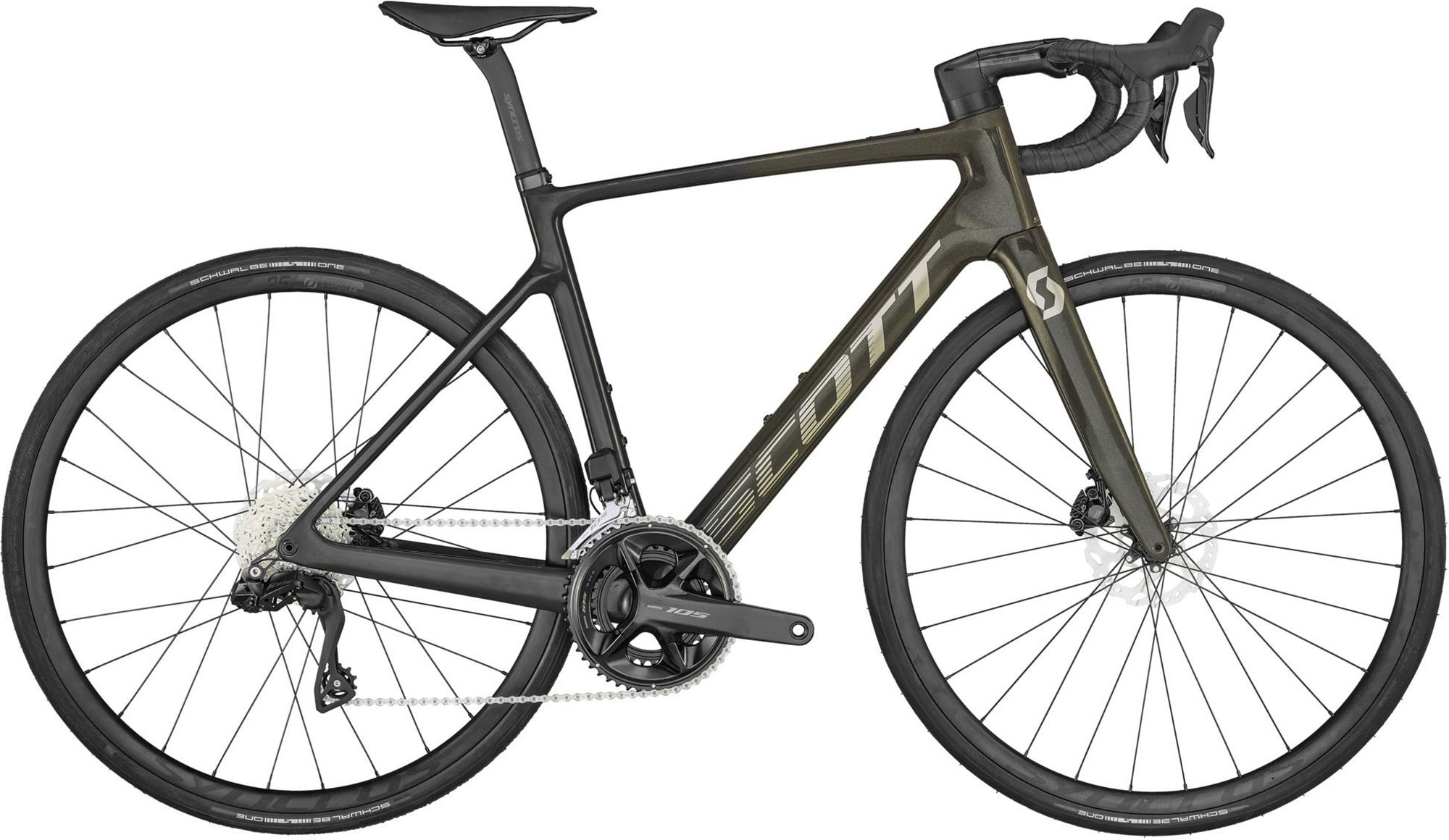

Scott Addict RC eRIDE 20

1.949,00 €

& Free Shipping

Size

Clear

SKU: N/A Categories: Bike, E-Bike, E-Bike Road Brand: Scott

Scott Addict RC eRIDE 20

When Scott decided to develop an Addict eRIDE, they didn’t do it to simplify everything. No, you wanted to make things even more challenging. Higher, longer and steeper climbs were the goal. So that you leave the house even earlier and come home even later. Light, powerful and just as reliable as its World Tour brother. The Addict eRIDE is a real revelation in the world of cycling. Available with range booster. Equipped with a Mahle hub motor with 55 Nm torque, a 236 Wh battery and the reliable 105 Di2 electronic shifting system from Shimano.

Features – Scott Addict eRIDE 20

Addict RC Disc HMX carbon frame
Addict eRIDE HMX carbon fork
Shimano 105 Di2 24 gears
Mahle motor hub drive 55Nm, max. torque 236Wh battery, total 407Wh with optional Mahle Range Extender E185
Syncros Capital 2.0 25e Disc wheelset
Schwalbe One 30 mm tires
Syncros components made from carbon/aluminum

Please note that no pedals are included in the scope of delivery!

Technologies

EVO-LAP technology
When manufacturing a Scott frame, the right choice of materials is crucial – 80% of the work is done. But the remaining 20% requires the greatest precision. That’s why Scott uses the highest quality carbon fibers on the market and combines them with specific processes such as FEA (Finite Element Analysis) software to optimally map the carbon layer structure.

With FEA, Scott can simulate various forces on a virtual frame model and adapt the design accordingly. This software enables the creation of complete virtual prototypes that take into account all physical phenomena from the real environment.

Thanks to EvoLap technology, Scott models the frame to optimize the surface area. Tube shapes are simulated using differently oriented carbon layers, the load distribution in different areas is tested and the results of different configurations are analyzed.

The extensive computer modelling has enabled Scott to optimize the carbon layers in all parts of the frame. Assembling the first prototypes resulted in a super light and compact frame, without sacrificing stiffness, comfort or impact resistance. The entire range benefits from EvoLap technology.

Mahle X20 drive unit
The Mahle X20 motor is silent and completely resistance-free. The technology behind it uses a special assistance system for road bikes, which not only ensures a natural riding experience when the rider exceeds 25 km/h and the assistance is switched off, but also when it is switched on again. The transition is smooth, it doesn’t jerk and there’s no unnatural boost in between – it’s subtle and light. What’s more, thanks to the torque and cadence sensor in the bottom bracket, it also learns from your riding style and adapts its responses and support to you. The Mahle X20 system is one of the lightest on the market with a total weight of 3.2 kg and a maximum torque of 55 Nm.

Mahle IX250
The Addict eRIDE has a 236 Wh battery that is inconspicuously placed in the down tube. The battery has intelligent technology with the function that the battery can be charged to 80% of its full capacity in less than two hours. The battery gives the bike a sleek look and is not too bulky, keeping it light and closer to an acoustic bike.

Mahle HMI control
The Mahle HMI controller is discreetly built into the top tube. The remote control is minimalist and simple, but provides all the data you need while riding. With just one glance, you get an overview of the battery status, support mode, warnings and notifications. With the controller, you can easily switch the drive unit on and off and switch between support modes.

My Smartbike app
The Mahle My SmartBike app keeps you up to date with everything concerning your bike. You can easily track your ride, perform system updates within minutes and view the status of your bike. Here you can also adjust the motor and enter how you like the support and pedal response. It can be easily integrated with recorded Strava activities, which can be viewed in the app.

Support modes
The X20 system from Mahle offers four riding modes: ECO, Mid-Power, Turbo and Smart-Assist. Smart-Assist mode responds to the rider and adjusts the assistance according to weight, power and the way the terrain changes during the ride. With Smart Assist mode, the driver does not have to adjust the driving mode, but the system adapts the modes to the terrain.

Mahle Range Extender
The Addict RC eRIDE is compatible with a range extender, which provides an additional 171 Wh and a total output of 407 Wh. The range extender comes in the design of a simple water bottle. Connecting to the system is as simple as sliding a bottle into the water bottle cage and the system automatically adjusts to the two power sources.

Please note that this bike must be registered in the Mahle “My SmartBike” app to unleash its full potential.

Addict ERide Size Chart

Shimano 105 Di2

Manufacturer item no.: 290613052
EAN: 7615523524242
Model year: 2024
Manufacturer:
Scott Sports SA
Route du Crochet 11
1762 Givisiez
Switzerland

Person responsible in the EU:
SSG (Europe) Distribution Center SA
P.E.D. Zone C1 Rue du Kiell 60
6790 Aubange
Belgium
www.scott-sports.com/contact

Size	XS49, S52, M54, L56, XL58

Specifications

Configuration

Frame:	Addict eRIDE Disc HMX Endurance geometry / Replaceable Derailleur Hanger Fully Internal cable routing Range Extender Ready
Frame material:	Carbon
Wheel size:	28″
Speeds:	2 x 12
Colour:	raw carbon / yellow flakes / chrome silver
Fork:	Addict eRIDE HMX Flatmount Disc 1 1/4″-1 1/2″ Excentric Carbon steerer
Brakes:	Shimano BR-R7170 Hyd.Discn flatmount
Brake discs:	160/F SM-RT70 CL and 160/R SM-RT76 6B
Brake levers:	Shimano 105 Di2 ST-R7170
Headset:	Syncros Addict RC Integrated
Stem:	Syncros RR 1 5 iC 1 1/4″: 90mm; S/52: 100mm; M/54: 110mm; L/56: 120mm; XL/58: 120mm
Handlebar:	Syncros Creston 2.0 Compact Alloy
Saddle:	Syncros Belcarra Regular 2.0
Seatpost:	Syncros Duncan 1.0 D-Shape
Crankset:	Shimano 105 FC-R7100 Hollowtech II 50×34

Bottom bracket:	Mahle Torque sensor
Rear derailleur:	Shimano 105 Di2 RD-R7150 24 Speed
Gear shifters:	Shimano 105 Di2 ST-R7170
Front derailleur:	SHIMANO 105 DI2 FD-R7150
Cassette:	Shimano CS-R7100-12 11-34
Chain:	Shimano 105 CN-M6100-12
Tyres:	Schwalbe ONE Race-Guard 700x30C
Wheelset:	Syncros Capital 2.0 25e Disc 24 Front 12x100mmTA /28 Rear 12x142mmTA
Battery:	Mahle 36V-236Wh
Charger:	Mahle 100-240V 4A Active Charger
Engine:	Mahle X20 Motor Hub drive 55Nm max Torque / EU: 25kmh – US: 20mph
Pedals:	not included
Maximum total weight allowed:	120 kg (body weight + bike + equipment)
Weight:	ab 11,66 kg

Drivetrain

The new revolution is here: The Mahle X20 system is the lightest and most intelligent eBike rear hub system on the market

Mahle X20, the new benchmark in the SmartBike industry

Ultracompact, light and smart system that creates a full range of new riding possibilities while making eBikes look & feel indistinguishable from high performance bikes. The latest innovations create the best support at any cadence, whether racing at top speeds or climbing up a mountain. X20 is designed to drive the rider and the whole industry forward.

The subtlety of performance
WFull system integration and lowest system weight in the market makes the X20 system go completely unnoticed until you feel the 55Nm of torque.

You set the limits
New 236 Wh/350 Wh internal batteries which can be complemented with a 171 Wh Range Extender, delivering up to 200 Km Autonomy. Intelligent fast charging system up to 4A charging the battery up to 80% of its full capacity in less than 2 hours.

An alive system
The new compact Head Unit information system includes BT and ANT+ connectivity, brightness sensor and 3D accelerometer, combining everything you need to know in a single light line.

Everything you need
The new torque and cadence sensor in the bottom bracket allows the eBike to accurately read each watt of power you apply, giving the user the appropriate response thanks to AI and Machine Learning. The system learns from you and adapts to your needs and the environment at any given moment.

The lightest system on the market
With only 3.2 Kg of system weight, including drive unit, inner battery and head unit, the X20 System is the lightest eBike rear hub system on the market

Mahle X20 motor with 55 Nm

The lightest drive unit on the market
The crown jewel of the new X20 system that drove the whole industry forward. Lightweiht at only 1399 grams. It features the AMC system -Automatic Motor Connection, patent pending- which eliminates the need for motor cables and allows natural positioning of the wheel by attaching it via a standard 12 mm thru axle.

The subtlety of performance
The X20 drive unit with a torque of 55 Nm, compatible with the EU market (25 km/h) and the US market (20 km/h), has been developed and assembled in Europe to achieve maximum performance levels, completely eliminating air resistance when exceeding the maximum assisted speed without affecting the rider.

Always ready
Compatible with all freewheel standards and groupsets with up to 13 gears. The X20 drive unit has a new quick-change system for the freewheel, which makes maintenance easier and keeps the motor ready for use at all times.

New control unit
Knowing exactly what is happening in your eBike without compromising the design and riding experience is now a reality. Battery level, assistance power, warnings and notifications can be called up at a glance, allowing the rider to concentrate on what’s important: the ride.

AI & Machine Learning
The X20 system is the first system capable of processing the signals from all sensors and the rider’s movements and adapting the eBike’s response to the terrain and the user’s efforts and needs. It has machine learning technology to react in real time and AI for post-processing in the cloud.

You decide the ride
With its 55Nm, the X20 system will take you further. The power, acceleration and response of the system can be adjusted according to the level of assistance*. The torque and cadence sensor in the bottom bracket is a masterpiece that enables the integration of any groupset

Mahle X20 IX236Wh battery

Further, safer, more efficient, faster
The new batteries, iX2, iX3 and Range Extender, offer an assisted riding autonomy that can go beyond 140km and optimize consumption thanks to the new generation of integrated motor controls

Intelligent charging
The charging system is designed to provide information on the state of charge, update the system or adapt the charging current to the type and condition of the battery, significantly reducing charging times.

One step ahead
The new generation of range extenders with 171Wh and a weight of only 1.1kg increases the autonomy of the eBike by 50% to 70% and offers the option of setting the operating mode and discharge priority
