Finding the right balance between work and private life can be difficult. The Merida eBIG.NINE 700 EQ manages this balancing act perfectly. Off-road tires, a Suntour RAIDON34 suspension fork, a drive with a wide gear ratio and the improved Shimano EP801 drive with 85 Nm ensure that climbs and descents can be mastered quickly. The bike is also the perfect companion for the commute to work. The seamlessly integrated 630 Wh battery offers a long range and the ability to cross the city without breaking a sweat.

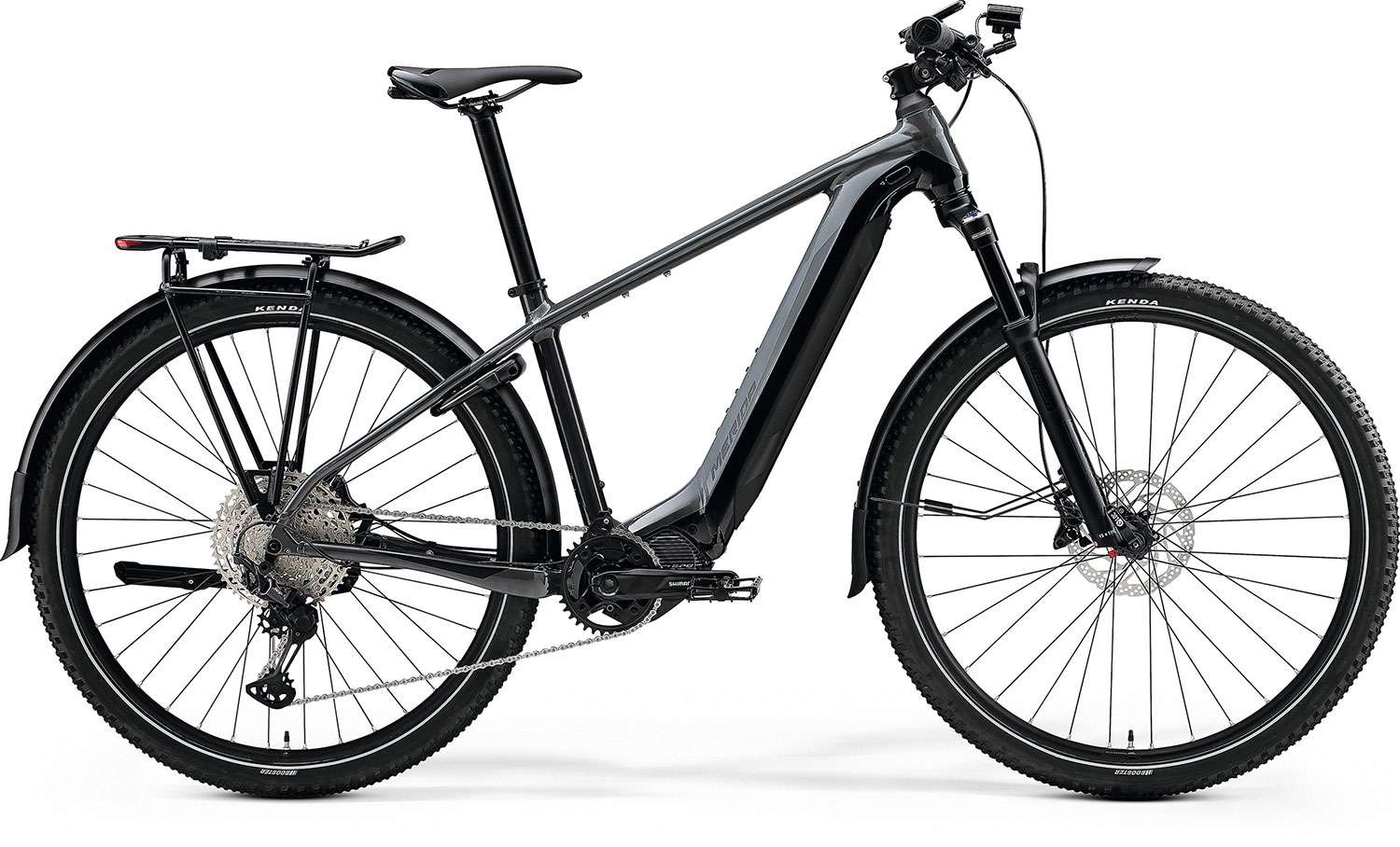

Merida eBIG.NINE 700 EQ EP2
As probably the most versatile e-bike, the tried-and-tested eBIG.NINE embodies the perfect balance between suitability for everyday use and sporty leisure activities. A bike that cuts a fine figure both off-road and on the way to work – especially if you want to have a bit of fun along the way. The high-quality aluminum frame seamlessly integrates a 630 Wh battery into the down tube. The model is equipped with a powerful and smooth-running Shimano drive to get you up every hill. The eBIG.NINE is equipped with mudguards and even a kickstand. So you can make the best of every situation.
Features
Smooth-running, sophisticated Shimano EP801 drive with 85 Nm
Lightweight aluminium frame with integrated 630Wh battery
Smooth-running Shimano 12-speed drivetrain
SR Suntour RAIDON34 suspension fork
Grippy Maxxis Rekon 29″ tires
Fully equipped with mudguards, lighting system, lock, rack and side stand
Technologies
Prolite 66 Triple Butted Aluminum
We use our proven, incredibly light and durable PROLITE 66 (6066) for the production of high-end aluminum frames. It can be excellently processed with our hydroforming technology, enables the production of complex shapes with triple butted wall thicknesses, a look that is strongly reminiscent of carbon frames and the best possible stiffness-to-weight ratio. Although lower quality alloys are less expensive, PROLITE 66 is the optimal choice for our high-performance frames.
HFS-Hydro Forming System
Whether in terms of shape or wall thickness, we use various forms of processing to get the best out of an aluminum tube. The most complex, but also the most effective, is hydroforming. Here, the aluminum tube is placed in a negative mould and a hot emulsion of water and oil is pressed through it under pressure. The end result is a perfectly formed aluminum tube that allows us to produce beautifully shaped and lightweight aluminum frames.
X-TAPER HEADTUBE
Steering precision is crucial for safe and confident handling. With the X-TAPER HEADTUBE, we can significantly improve this precision. A larger headset diameter at the bottom and a smaller one at the top help to cope with the stresses that modern riding styles and equipment can put on the head tube without adding unnecessary weight. The X-TAPER HEADTUBE allows easy installation of tapered forks and ensures precise and confidence-inspiring steering behavior.
SMOOTH WELDING
We use this process to give our weld seams a beautiful, flat finish. In this way, we avoid the unsightly visual side effects associated with TIG welding. The welder passes the welding torch over the seam twice, smoothing out the filler material. This requires a great deal of skill, but results in extremely stable and elegant frames that look like carbon at first glance.
INTERNAL CABLE ROUTING
In most of our frames, we route the shift and brake cables through the frame. They are either routed in and out through inconspicuous stops, or we use systems such as SMART ENTRY or WIRE PORT. The internal cable routing protects the shift and brake cables from the weather, ensures a clean, tidy look and also offers aerodynamic advantages.
Racelite 61 aluminum
We use at least 6061 grade aluminum for all our bikes, which is particularly well suited to our hydroforming and technoforming processes that allow us to vary the wall thickness to create double butted tubes and complex frame shapes. The alloy is also easy to weld. After being carefully heat-treated to maximize strength, we can use it to make strong, lightweight bike frames that are incredibly fun to ride.
Casting Motor Bracket
The motor interface on an e-bike frame has such a sophisticated shape that it can only be achieved with casting technology. Casting this part allows us to create a complex yet lightweight mold that forms an extremely strong connection between the motor and the frame, improving performance and reliability. It also gives the bike and motor an elegant and clean look.
MERIDA Frame Technologies: CASTED MOTOR BRACKET
82110250 4710949797652
2022
MERIDA INDUSTRY CO., LTD.
P.O. Box 56
Yuanlin
Taiwan
https://www.merida-bikes.com
SHIMANO EP8 – The right performance at the right time
What are the benefits of a SHIMANO E-MTB?
Available for a wide range of brands and models
Countless options to help you find the perfect E-MTB to suit your riding style and preferences
Technology proven on the trails
E-MTB systems are based on 40 years of research and are the undisputed benchmark in the mountain bike industry
Developed as a complete system
Unique performance thanks to harmonious coordination with other SHIMANO components
Discover the EP801 series from Shimano
The top model from Shimano. The lightweight and smarter E-MTB system EP8 (EP801) offers controllable high performance for a natural riding experience on the trails. A wide range of brands and models are already equipped with the versatile and powerful SHIMANO EP8 e-bike system. Click on a component to find out more.
SHIMANO EP8 (EP801) motor
The top-of-the-line EP8 (EP801) is a smarter drive unit that offers superbly controllable high power with a maximum torque of 85 Nm over a wider cadence range than ever before. The result is a harmonious power delivery and optimized control for a natural feel on the trail.
85 Nm of maximum torque over a wider cadence range
Harmonious and intuitive for a natural riding experience
Compact and lightweight at just 2.7 kg
Even smarter, enabling FREE SHIFT and AUTO SHIFT functionality in conjunction with the new DEORE XT Di2
Offers extended connectivity via CAN and ACC connections
Low noise development for relaxed riding on trails
Improved heat management prevents power loss on long climbs
Extensive configuration options via the FINE TUNE mode of the E-TUBE PROJECT Cyclist Cyclist Cyclist app
Support modes: Walk, Eco, Trail and Boost
All you need to know about the EP Series | SHIMANO
Switch for support mode
The large contact surfaces enable intuitive operation even on rough trails – with or without gloves Concave switches make it easy to switch between Eco, Trail and Boost mode.
Tidy cockpit thanks to compact design
Ergonomic, intuitive design
Push assist activated with one button
Robust construction for off-road use
Easy to operate with or without gloves
Rechargeable battery
The batteries allow you to ride longer on the trails and cover more kilometers. The internal battery with 630 Wh offers a higher capacity, so you can concentrate on the next bend and not on the battery indicator.
Long service life
After 1000 full charge cycles, the batteries still store 60 % of the maximum charge.
The quick-charge function gets you back on the trail faster
Enables long-distance rides
Compatible with SHIMANO Deore XT Di2 (optional)
The EP8 (EP801) is compatible with the precise electronic shifting technology of the DEORE XT Di2 and allows you to use the FREE SHIFT and AUTO SHIFT functions. Another plus is the large selection of cranks, chains and chainrings.
The DEORE XT Di2 is available in two versions:
Fast and easy shifting with HYPERGLIDE+ for 12-speed drivetrains with FREE SHIFT
Harmonious and durable shifting with LINKGLIDE technology for 11-speed drivetrains with FREE SHIFT and AUTO SHIFT
Advantages:
Shorter cranks prevent pedal slap and enable a smooth cadence with constant motor support
Crank lengths: 160 mm, 165 mm, 170 mm or 175 mm
Light and stable chainrings with DYNAMIC CHAIN ENGAGEMENT+ for improved chain retention in rough terrain
Chainring variants: 32T, 34T, 36T or 38T
What happens when DEORE XT Di2 meets the EP Series? | SHIMANO
Individual riding experience
TUBE PROJECT Cyclist Cyclist Cyclist App
Control everything via the E-TUBE PROJECT Cyclist Cyclist app, from the support level to the AUTO SHIFT settings. You can easily adjust the settings to the terrain and your preferences from the app. You can also save the settings in two different profiles and switch between them while riding.
With 15 customization modes, the ability to fine-tune the AUTO SHIFT and FREE SHIFT settings for DEORE XT Di2 and wireless firmware updates, the app offers maximum control and freedom to customize your riding experience.
E-TUBE PROJECT App from version 4.0 | SHIMANO
Fine-tune your ride with the E-TUBE PROJECT Cyclist App | SHIMANO
Trail mode
Trail mode uses the full 85 Nm of the EP8 drivetrain to support the rider comfortably, safely and reliably on difficult sections. The extremely versatile support mode is optimally tuned by default and requires no further adjustment. This allows you to concentrate fully on conquering the toughest trails. The harder you pedal, the more support power is available to you. This means that you are supported by the drive unit at exactly the right time and always have optimum traction and control. Whether it’s loose sand or steep climbs in the mountains, the drive unit always adapts quickly and independently so that you can concentrate fully on the terrain.
Geometry
S
M
L
XL
