Bike, E-Bike, E-Bike Fully, E-Mountainbike

Hoheacht Pasio Strato

1.499,00 €

& Free Shipping

Size

SKU: N/A Categories: Bike, E-Bike, E-Bike Fully, E-Mountainbike Brand: Hoheacht

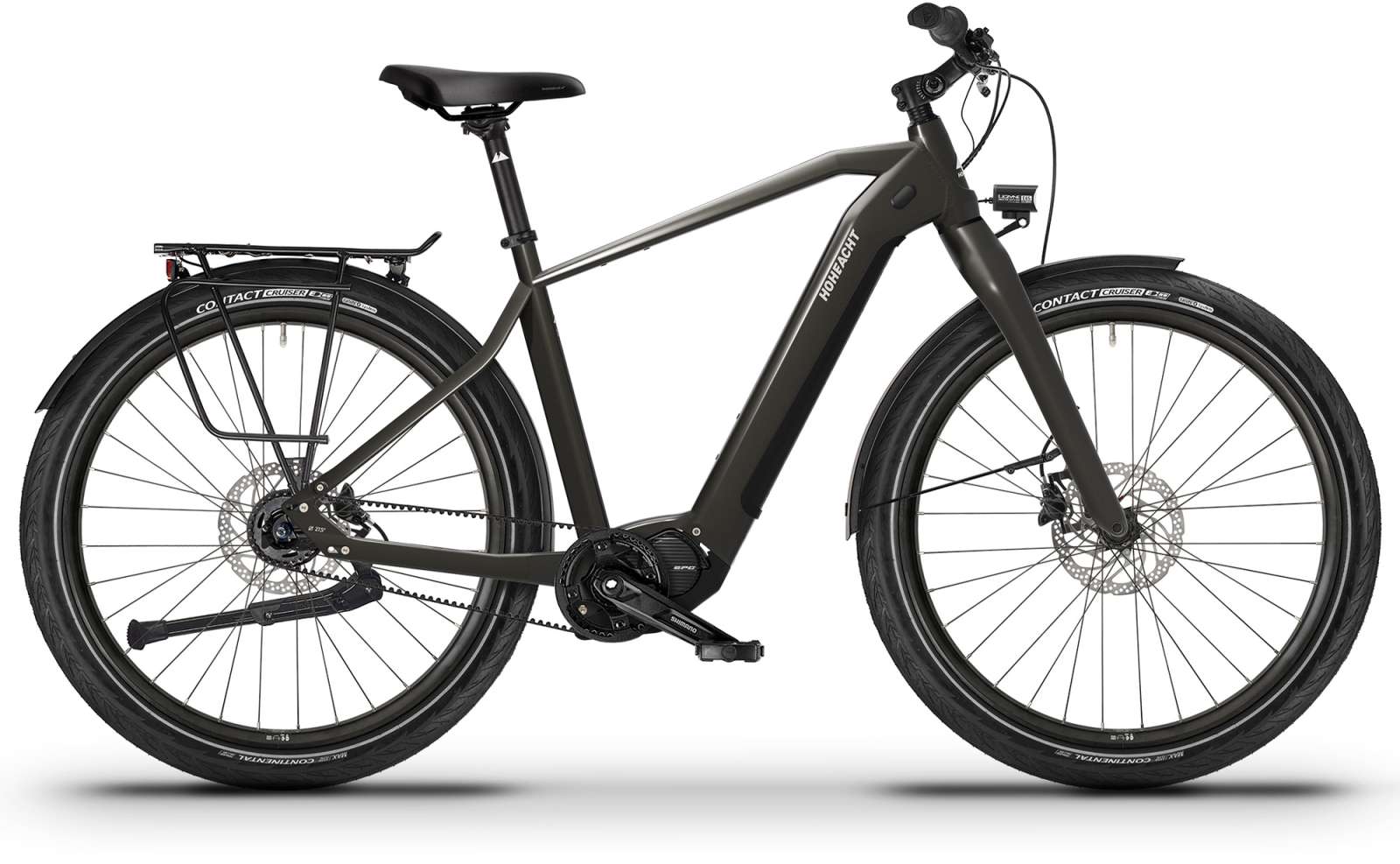

Hoheacht Pasio Strato

So that every city ride becomes an experience. Equipped with a lightweight aluminum frame and rigid fork, the HoheAcht Pasio Strato takes you through city traffic with ease. The 630 Wh battery and the powerful Shimano EP600 motor ensure that even long tours are no obstacle for you. The Shimano disc brakes and the powerful lighting system with parking light function ensure a good feeling and optimum safety on all routes.

City meets lightness: The HoheAcht Pasio Strato

The Gates CDX belt drive with Nexus 5-speed hub gears is ideal for cruising in the city.
Get ready for your next city tour with the Pasio Strato!

Features – HoheAcht Pasio Strato

Aluminium diamond frame
Shimano Steps DU-EP600 motor with 85 Nm torque and 630 Wh battery
Shimano Steps SC-EN600 display with Bluetooth and ANT
Rigid fork
Lezyne e-bike front light, Herrmans rear light, Ursus R81 Wave kickstand and AtranVelo pannier rack with 27 kg load capacity
Schwalbe Super Moto 27.5 x 2.4” tires

Highlights

Area of use
City, Urban

Motor – Shimano Steps, DU-EP600, 25 km/h, 85 Nm, mid-motor
Even demanding e-bikers who prefer advanced functions, comprehensive connectivity and user-friendly handling will be completely satisfied with the revolutionary EP6. The EP6 platform offers all modern features and brings outstanding added value for demanding adventures.

Drive
The Gates belt drive and Shimano Nexus 5 rear hub are an ideal combination for low-maintenance bikes, as they reduce dirt and maintenance. The Gates belt made of carbon fibers is more durable and cleaner than a chain. The Nexus 5 offers five gears, which is sufficient for everyday routes and city traffic and is well suited for e-bikes as it is easy to operate and robust.

Recommended frame sizes

Frame size:	42	48	55
Body size :	160-170 cm	170-180 cm	180-195 cm

Manufacturer item no.: B83020-2535AI6-2950C
Model year: 2024
Manufacturer:
TechniBike GmbH
Julius-Saxler-Straße 3
54550 Daun
Deutschland
shop@hoheacht-bikes.de www.hoheacht-bikes.de

Size	RH 42 (S), RH 46(M), RH 50 (L)

Specifications

Configuration

Frame:	H8 Aluminium Intube, Diamant
Frame material:	aluminium
Wheel size:	27.5″
Speeds:	1 x 5
Colour:	Obsidian
Fork:	Rigid fork, HoheAcht
Brakes:	Front and Rear: Shimano BR-MT200 hydraulic disc brake
Brake discs:	Front: Shimano SM-RT30, 180 mm, Centerlock; Rear: Shimano RT-E300, 180 mm, Centerlock
Headset:	ACROS, zs44, zs66, industrial bearings
Stem:	Kalloy – HoheAcht, 31.8 mm, 95 mm, 0-60°, Aluminium, black
Handlebar:	HoheAcht, 31.8 mm, Width 600 mm, Backsweep 9°, Rise 25 mm, Aluminium, black
Bar grips:	Herrmans, Line, 125 mm / 90 mm
Saddle:	Selle Royal, Essenza Plus, Male
Seatpost:	Kalloy HoheAcht, Seatpost 2D, 31,6 mm x 350 mm, 10 mm Offset, Aluminium
Crankset:	Shimano Steps FC-EM600, 170 mm; Chainring: Gates, 39T CDX + Spider, Aluminium

Rear derailleur:	Shimano Steps, Nexus SG-C7000, 5-speed rear hub
Gear shifters:	Shimano, Nexus, SL-C7000, 5 Gang
Cassette:	Gates, CDX sprocket, 28T
Chain:	Gates, 120T CDX
Tyres:	Schwalbe, Super Moto, 27.5x 2.4” (62-584), Reflex
Front hub:	Formula, CL-811, Disc, 15 x 110 mm, industrial bearings, Boost
Rear hub:	Shimano, Nexus, SG-C7000, 5-speed, freewheel, Center Lock
Spokes :	Mach1, Edelstahl, 2.0 mm, black
Rims:	Mach1, Trucky 30, Aluminium, black
Display:	Shimano Steps, SC-EN600, Bluetooth, ANT Private
Battery:	Shimano Steps, BT-EN806, 630 Wh, intube. Easy removable battery, e.g. for charging.
Charger:	Shimano Steps EC-E8004, 4 A
Engine:	Shimano Steps, DU-EP600, 25km/h, 85 Nm, mid engine
Front light:	Lezyne, E-Bike Hecto StVZO E65, 6-12 V, LED, 4 W, 210 lm
Backlight:	Herrmans, H-CARGO E-BIKE 6-12 V, 4 LEDs, 0.6 W, integrated, parking light, BR-12 reflector
Pedals:	Marwi, SP-828 Black SBL, Aluminium with PP
Other details:	Battery Lock: ABUS BLO SHI IT2 XPLUS Kickstand: Ursus R81 Wave, KSA 40 mm, rear
Maximum total weight allowed:	150 kg (body weight + bike + equipment)
Weight:	ab 25.0 kg

Drivetrain

All you need to know about the EP Series | SHIMANO

What are the benefits of a SHIMANO E-MTB?

Available for a wide range of brands and models
Countless options to help you find the perfect E-MTB to suit your riding style and preferences

Technology proven on the trails
E-MTB systems are based on 40 years of research and are the undisputed benchmark in the mountain bike industry

Developed as a complete system
Unique performance thanks to harmonious coordination with other SHIMANO components

Discover the EP600 series from Shimano

The EP6 E-MTB system offers EP8-level performance at an affordable price. A wide range of brands and models are already equipped with the versatile and powerful SHIMANO EP6 e-bike system. Click on a component to find out more.

SHIMANO EP6 motor

Shimano DU EP600 Motor

The EP6 drive unit was developed to offer e-bike performance at the level of the EP8 at a more affordable price without sacrificing the 85 Nm of torque.

85 Nm maximum torque ensures a harmonious, natural and intuitive riding experience.
The 3 kg unit combines intelligent sensors with efficient pedal mechanics
Enables FREE SHIFT and AUTO SHIFT functionality in conjunction with the new DEORE XT Di2
Comprehensive configuration options via the FINE TUNE mode of the E-TUBE PROJECT Cyclist Cyclist app
Offers extended connectivity via CAN and ACC connections
Support modes: Walk, Eco, Trail and Boost
Suitable for a wide range of applications from mountain biking to urban exploration rides

SHIMANO SC-EN600 display

Shimano has developed a range of displays that optimize the riding experience in a variety of applications.

SC-EN600

Compact size for a secure fit on the handlebars
Easy to read color display even in bright sunlight
Configurable data dashboards allow the selection of four riding data per screen

Support mode switch

The ergonomic buttons of the SW-EN600-L are easily accessible and ergonomic with an intuitive feel for quick and easy setting of the assist mode.

Minimalist display with assist switch as well as light and on/off switch
Connection with the E-TUBE PROJECT Cyclist Cyclist app via Bluetooth or ANT+
Ergonomic, intuitive design
Push assist can be activated with a button
Easy to operate with or without gloves

Rechargeable battery

The batteries allow you to ride longer on the trails and cover more kilometers. The internal battery with 630 Wh offers a higher capacity, so you can concentrate on the next bend and not on the battery indicator.

Long service life
After 1000 full charge cycles, the batteries still store 60 % of the maximum charge.
The quick-charge function gets you back on the trail faster
Enables long-distance rides

Compatible with SHIMANO Deore XT Di2 (optional)

The EP6 is compatible with the precise electronic shifting technology of the DEORE XT Di2 and allows you to use the FREE SHIFT and AUTO SHIFT functions. Another plus is the large selection of cranks, chains and chainrings.

The DEORE XT Di2 is available in two versions:

Fast and easy shifting with HYPERGLIDE+ for 12-speed drivetrains with FREE SHIFT
Harmonious and durable shifting with LINKGLIDE technology for 11-speed drivetrains with FREE SHIFT and AUTO SHIFT

Advantages:

Shorter cranks prevent pedal slap and enable a smooth cadence with constant motor support
Crank lengths: 160 mm, 165 mm, 170 mm or 175 mm
Light and stable chainrings with DYNAMIC CHAIN ENGAGEMENT+ for improved chain retention in rough terrain
Chainring variants: 32T, 34T, 36T or 38T

What happens when DEORE XT Di2 meets the EP Series? | SHIMANO

Individual riding experience

TUBE PROJECT Cyclist Cyclist Cyclist App
Control everything via the E-TUBE PROJECT Cyclist Cyclist app, from the support level to the AUTO SHIFT settings. You can easily adjust the settings to the terrain and your preferences from the app. You can also save the settings in two different profiles and switch between them while riding.

With 15 customization modes, the ability to fine-tune the AUTO SHIFT and FREE SHIFT settings for DEORE XT Di2 and wireless firmware updates, the app offers maximum control and freedom to customize your riding experience.

E-TUBE PROJECT App from version 4.0 | SHIMANO

Fine-tune your ride with the E-TUBE PROJECT Cyclist App | SHIMANO

Geometry

RH 42 (S)

RH 46 (M)

RH 55 (L)
