Bike, E-Bike, E-Bike Fully, E-Mountainbike

Hoheacht Amola Roko

1.499,00 €

& Free Shipping

Size

SKU: N/A Categories: Bike, E-Bike, E-Bike Fully, E-Mountainbike Brand: Hoheacht

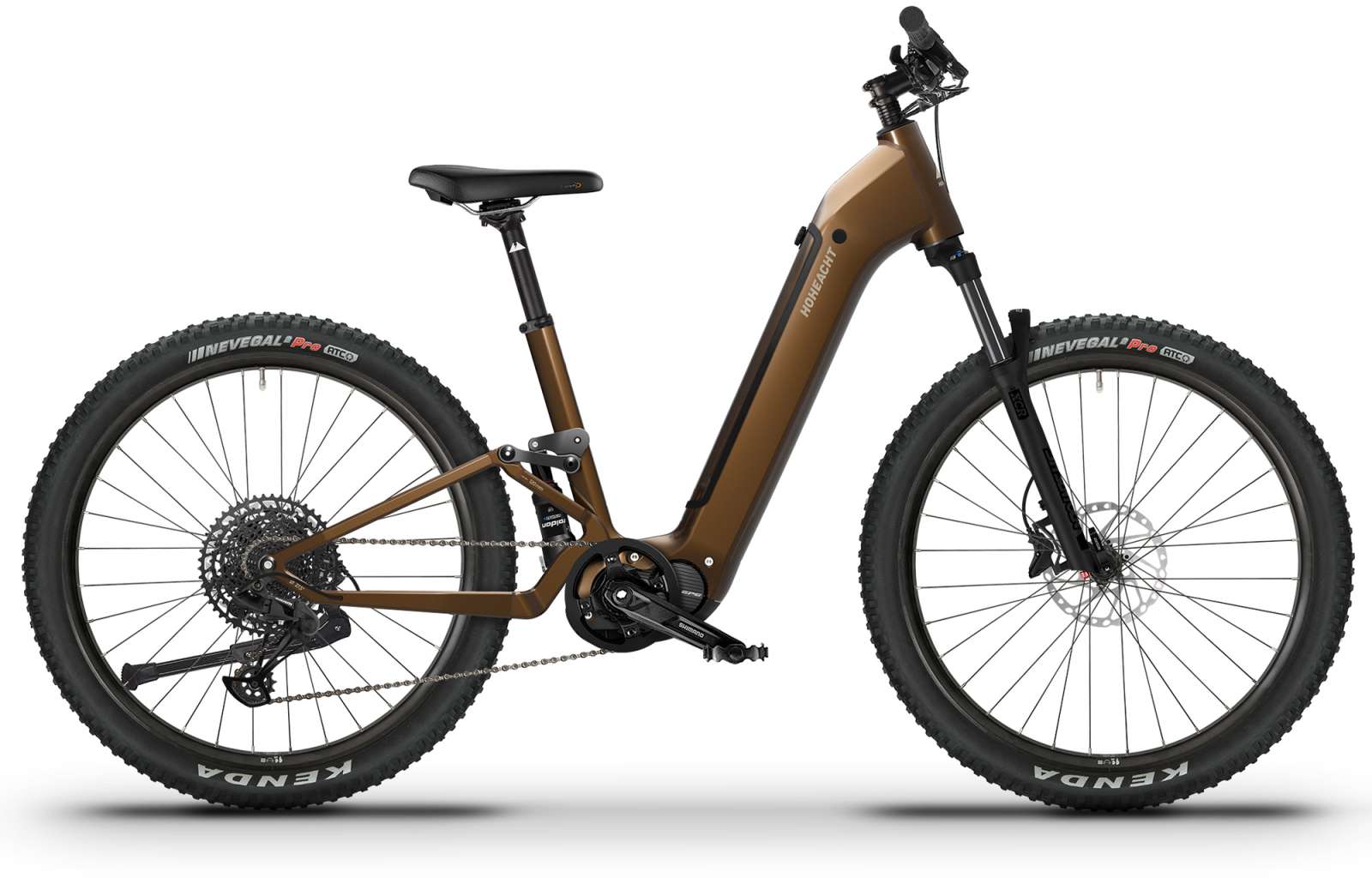

Hoheacht Amola Roko

The full-suspension HoheAcht AMOLA Roko with Wave-Fully aluminium frame offers a full 120 mm of suspension travel and combines comfort, Safety and off-road suitability in an optimal way. The low step-through not only makes it easier to get on and off, but also offers safety reserves in difficult driving situations. The powerful Shimano EP6 mid-motor supports the ride with a torque of up to 85 Nm. In combination with the large, integrated 630 Wh battery, nothing stands in the way of long tours with plenty of altitude.

Trail bike meets low step: the HoheAcht Amolo Roko

Hydraulic four-piston Shimano disc brakes and grippy Kenda Nevegal tyres ensure a reliable deceleration even in adverse weather conditions. The SRAM SX 12-speed gears with a wide gear range (11-50 teeth) take the fear out of even steep climbs.
Get ready for your next trail with the AMOLA Roko!

Features – HoheAcht Amolo Roko

Fully-wave aluminium frame
Shimano Steps DU-EP6 mid-motor with 85 Nm torque and 630 Wh battery
Shimano Steps SC-EN600 display with bluetooth and ANT
SR Suntour XCR34-Boost-AIR suspension fork with 120 mm travel
Suntour RS20 Raidon Air Metric shock
Sate-lite lighting set and Ursus R81 Wave kickstand rear
Kenda 27.5” x 2.4” tires

Highlights

Range of use
Trail and all mountain.

Motor – Shimano Steps, DU-EP6, 25 km/h, 85 Nm, mid-motor
Even demanding e-bikers who prefer advanced functions, comprehensive connectivity and user-friendly handling will be completely satisfied with the revolutionary EP6. The EP6 platform offers all the modern features of the EP8 and provides outstanding added value for demanding MTB adventures.

Rear derailleur
The SX Eagle rear derailleur from SRAM is specially designed for 12-speed gears and has a robust steel housing. The Cage Lock™ feature allows for quick removal and attachment of the rear wheel when necessary and also makes installing the chain easier. Thanks to the X-Sync™ tooth design and the X-Horizon™ cage shape, optimal chain hold is ensured and precise shifting is possible.

Recommended frame sizes

Frame size:	42	48	55
Body size :	160-170 cm	170-180 cm	180-195 cm

Manufacturer item no.: B81020-1311AI6-0342C
Model year: 2024
Manufacturer:
TechniBike GmbH
Julius-Saxler-Straße 3
54550 Daun
Deutschland
shop@hoheacht-bikes.de www.hoheacht-bikes.de

Size	RH 42 (S), RH 46(M), RH 50 (L)

Specifications

Configuration

Frame:	Wave-Fully, aluminium
Frame material:	aluminium
Wheel size:	27.5″
Speeds:	1 x 12
Colour:	Bernstein
Fork:	SR Suntour, XCR 34-Boost-AIR, 120 mm travel
Rear Shock:	SR Suntour, RS20 Raidon Air LO Metric
Travel:	120 mm
Brakes:	Front and Rear: Shimano BR-MT420 4-piston hydraulic disc brake
Brake discs:	Front: Shimano SM-RT64, 180 mm, Centerlock; Rear: Shimano RT-EM600, 180 mm, Centerlock
Headset:	ACROS, zs56, zs66, industrial bearings, internal cable routing
Stem:	HoheAcht, 60 mm, ±7°, aluminium, black
Handlebar:	HoheAcht, 31.8 mm, Width 640 mm, Backsweep 9°, Rise 25 mm, Aluminium, black
Bar grips:	Velo Plastic, Vexk, 135 mm
Saddle:	Selle Royal, New Lookin Ath Plus

Seatpost:	HoheAcht, Seatpost 2D, 30,9 mm x 350 mm, 10 mm Offset, Aluminium
Crankset:	Shimano Steps FC-EM600, 170 mm; Chainring: Shimano Steps SM-CRE80, 36t, Steel/Aluminium
Rear derailleur:	SRAM SX Eagle, RD-SX-1-B1, 12-speed derailleur
Gear shifters:	SRAM, SX Eagle, TRIGGER, SL-SX1-PA-A1, 12-speed
Cassette:	SRAM, EAGLE, CS-PG-1210, 12-speed, 11-50 teeth
Chain:	YBN, S12e S2
Tyres:	Kenda, Nevegal 2 K1211, 27.5x 2.4” (60-584), TLR
Front hub:	Formula, CL-811, Disc, 15 x 110 mm, industrial bearings, Boost
Rear hub:	Formula, ECT-148S, Disc, 12 x 148 mm, industrial bearings, Boost
Rims:	Mach1, Trucky 30, Aluminium, black
Display:	Shimano Steps, SC-EN600, Bluetooth, ANT Private
Battery:	Shimano Steps, BT-EN806, 630 Wh, intube. Easy removable battery, e.g. for charging.
Charger:	Shimano Steps EC-E8004, 4 A
Engine:	Shimano Steps, DU-EP6, 25km/h, 85 Nm, mid engine
Front light:	Sate-lite lighting set LF-12, Li-ion battery, max. 50 LUX + Messingschlager reflector set
Backlight:	Sate-lite lighting set LR-03K, 200mAh LIR2050 battery, 220° visibility
Pedals:	Marwi, SP-160 BL, Aluminium
Other details:	Battery Lock: ABUS BLO SHI IT2 XPLUS Kickstand: Ursus, R81 Wave, KSA 40 mm, rear
Maximum total weight allowed:	140 kg (body weight + bike + equipment)
Weight:	ab 26.7 kg

Drivetrain

All you need to know about the EP Series | SHIMANO

What are the benefits of a SHIMANO E-MTB?

Available for a wide range of brands and models
Countless options to help you find the perfect E-MTB to suit your riding style and preferences

Technology proven on the trails
E-MTB systems are based on 40 years of research and are the undisputed benchmark in the mountain bike industry

Developed as a complete system
Unique performance thanks to harmonious coordination with other SHIMANO components

Discover the EP600 series from Shimano

The EP6 E-MTB system offers EP8-level performance at an affordable price. A wide range of brands and models are already equipped with the versatile and powerful SHIMANO EP6 e-bike system. Click on a component to find out more.

SHIMANO EP6 motor

The EP6 drive unit was developed to offer e-bike performance at the level of the EP8 at a more affordable price without sacrificing the 85 Nm of torque.

85 Nm maximum torque ensures a harmonious, natural and intuitive riding experience.
The 3 kg unit combines intelligent sensors with efficient pedal mechanics
Enables FREE SHIFT and AUTO SHIFT functionality in conjunction with the new DEORE XT Di2
Comprehensive configuration options via the FINE TUNE mode of the E-TUBE PROJECT Cyclist Cyclist app
Offers extended connectivity via CAN and ACC connections
Support modes: Walk, Eco, Trail and Boost
Suitable for a wide range of applications from mountain biking to urban exploration rides

SHIMANO SC-EN600 display

Shimano has developed a range of displays that optimize the riding experience in a variety of applications.

SC-EN600

Compact size for a secure fit on the handlebars
Easy to read color display even in bright sunlight
Configurable data dashboards allow the selection of four riding data per screen

Support mode switch

The ergonomic buttons of the SW-EN600-L are easily accessible and ergonomic with an intuitive feel for quick and easy setting of the assist mode.

Minimalist display with assist switch as well as light and on/off switch
Connection with the E-TUBE PROJECT Cyclist Cyclist app via Bluetooth or ANT+
Ergonomic, intuitive design
Push assist can be activated with a button
Easy to operate with or without gloves

Rechargeable battery

The batteries allow you to ride longer on the trails and cover more kilometers. The internal battery with 630 Wh offers a higher capacity, so you can concentrate on the next bend and not on the battery indicator.

Long service life
After 1000 full charge cycles, the batteries still store 60 % of the maximum charge.
The quick-charge function gets you back on the trail faster
Enables long-distance rides

Compatible with SHIMANO Deore XT Di2 (optional)

The EP6 is compatible with the precise electronic shifting technology of the DEORE XT Di2 and allows you to use the FREE SHIFT and AUTO SHIFT functions. Another plus is the large selection of cranks, chains and chainrings.

The DEORE XT Di2 is available in two versions:

Fast and easy shifting with HYPERGLIDE+ for 12-speed drivetrains with FREE SHIFT
Harmonious and durable shifting with LINKGLIDE technology for 11-speed drivetrains with FREE SHIFT and AUTO SHIFT

Advantages:

Shorter cranks prevent pedal slap and enable a smooth cadence with constant motor support
Crank lengths: 160 mm, 165 mm, 170 mm or 175 mm
Light and stable chainrings with DYNAMIC CHAIN ENGAGEMENT+ for improved chain retention in rough terrain
Chainring variants: 32T, 34T, 36T or 38T

What happens when DEORE XT Di2 meets the EP Series? | SHIMANO

Individual riding experience

TUBE PROJECT Cyclist Cyclist Cyclist App
Control everything via the E-TUBE PROJECT Cyclist Cyclist app, from the support level to the AUTO SHIFT settings. You can easily adjust the settings to the terrain and your preferences from the app. You can also save the settings in two different profiles and switch between them while riding.

With 15 customization modes, the ability to fine-tune the AUTO SHIFT and FREE SHIFT settings for DEORE XT Di2 and wireless firmware updates, the app offers maximum control and freedom to customize your riding experience.

E-TUBE PROJECT App from version 4.0 | SHIMANO

Fine-tune your ride with the E-TUBE PROJECT Cyclist App | SHIMANO

Geometry

RH 42 (S)

RH 46 (M)

RH 55 (L)
