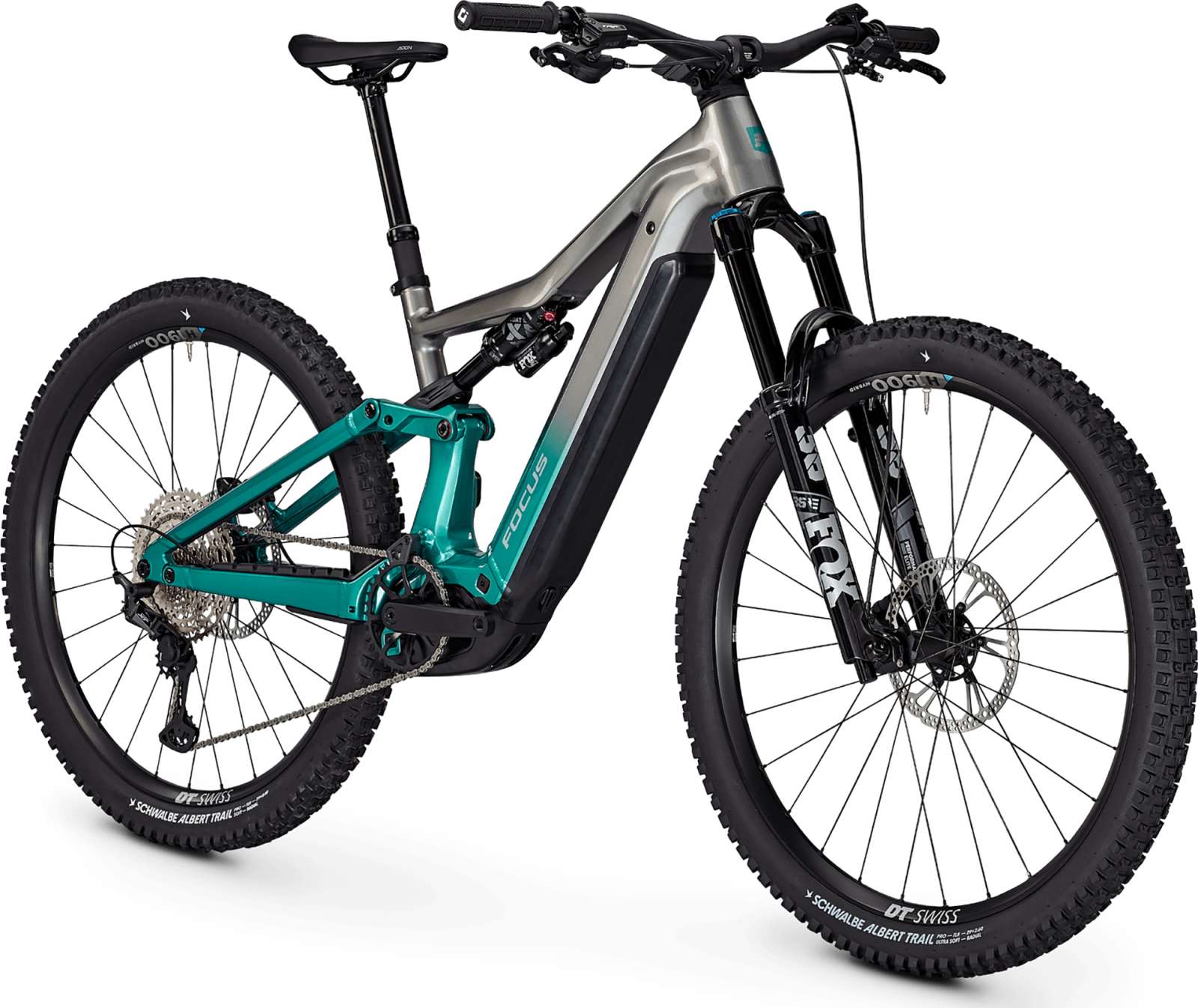

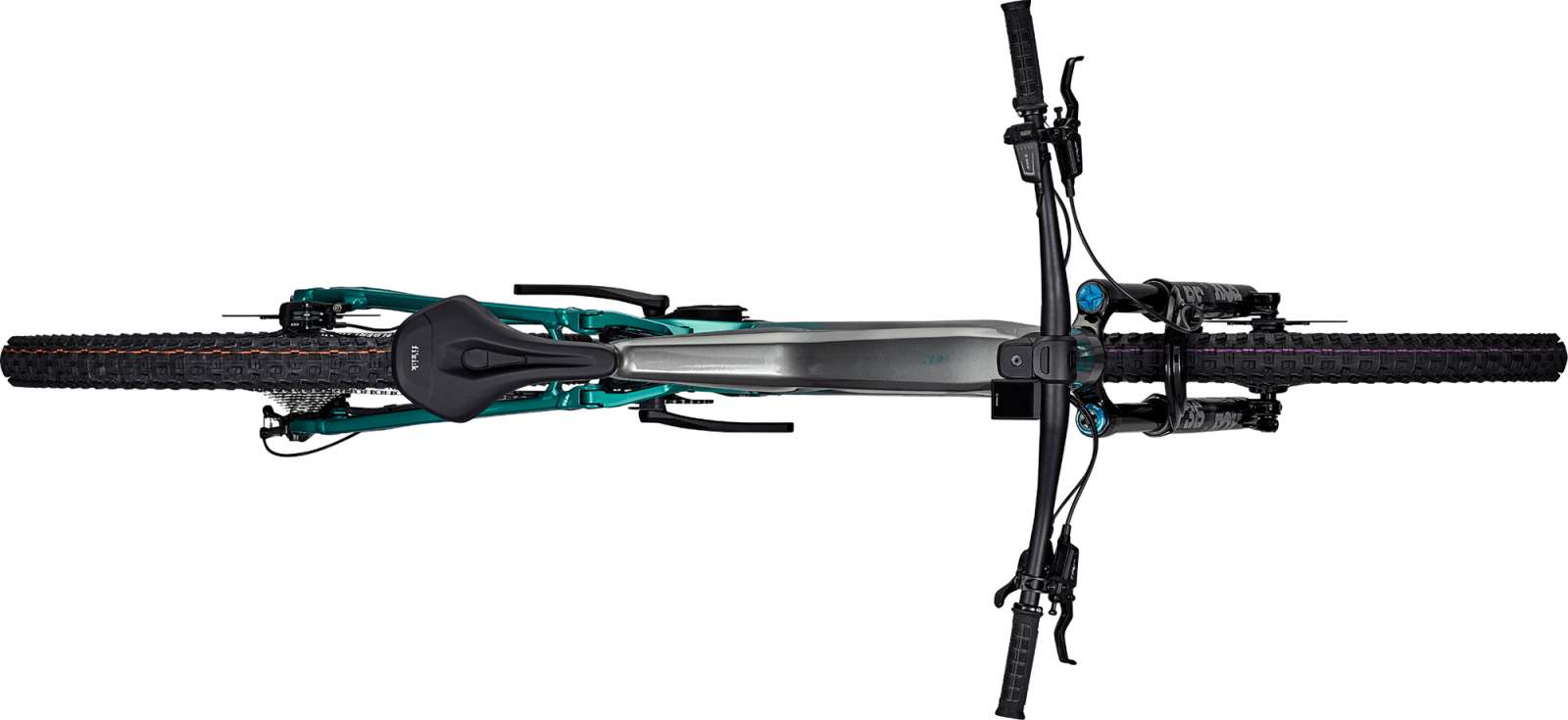

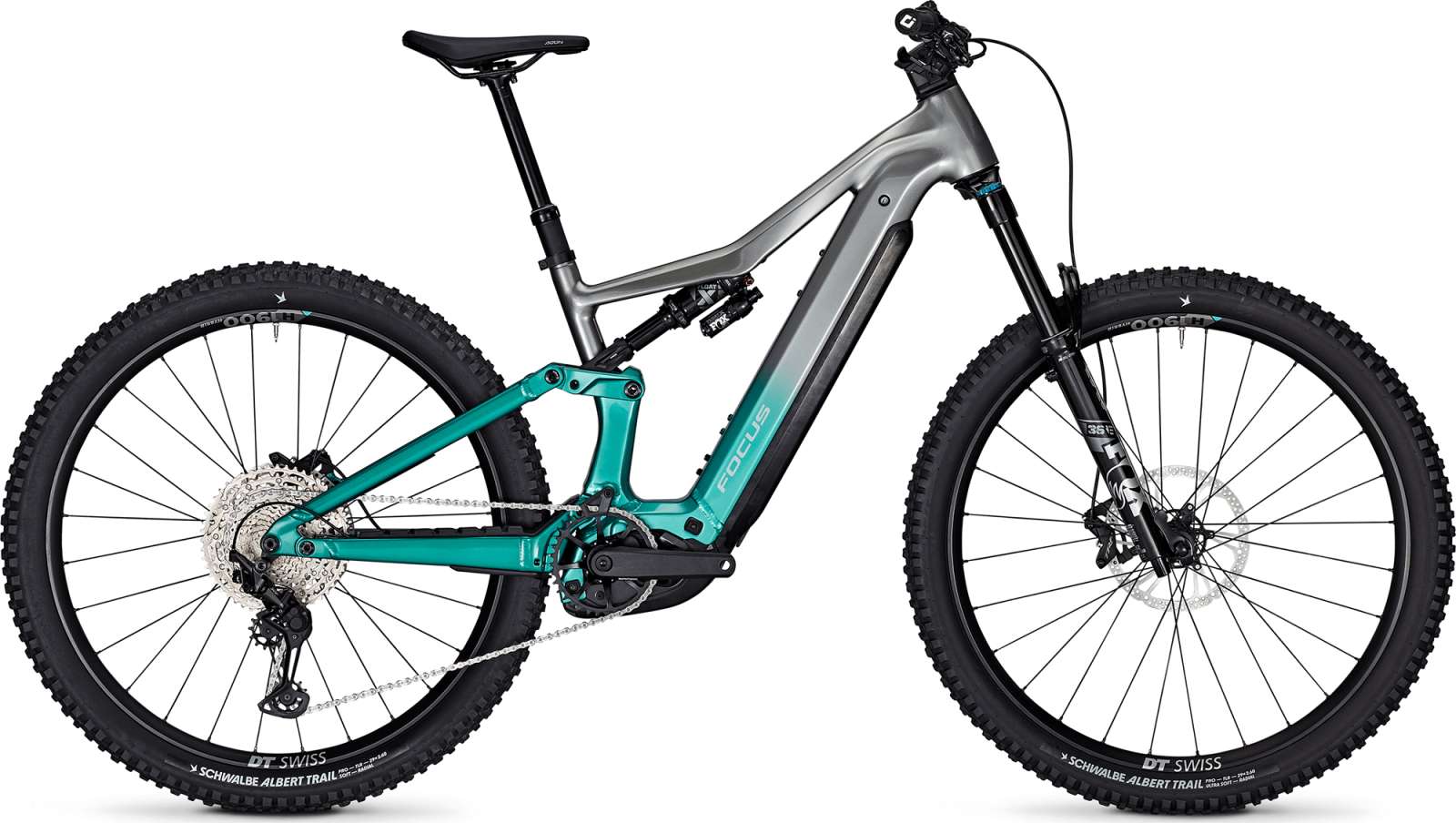

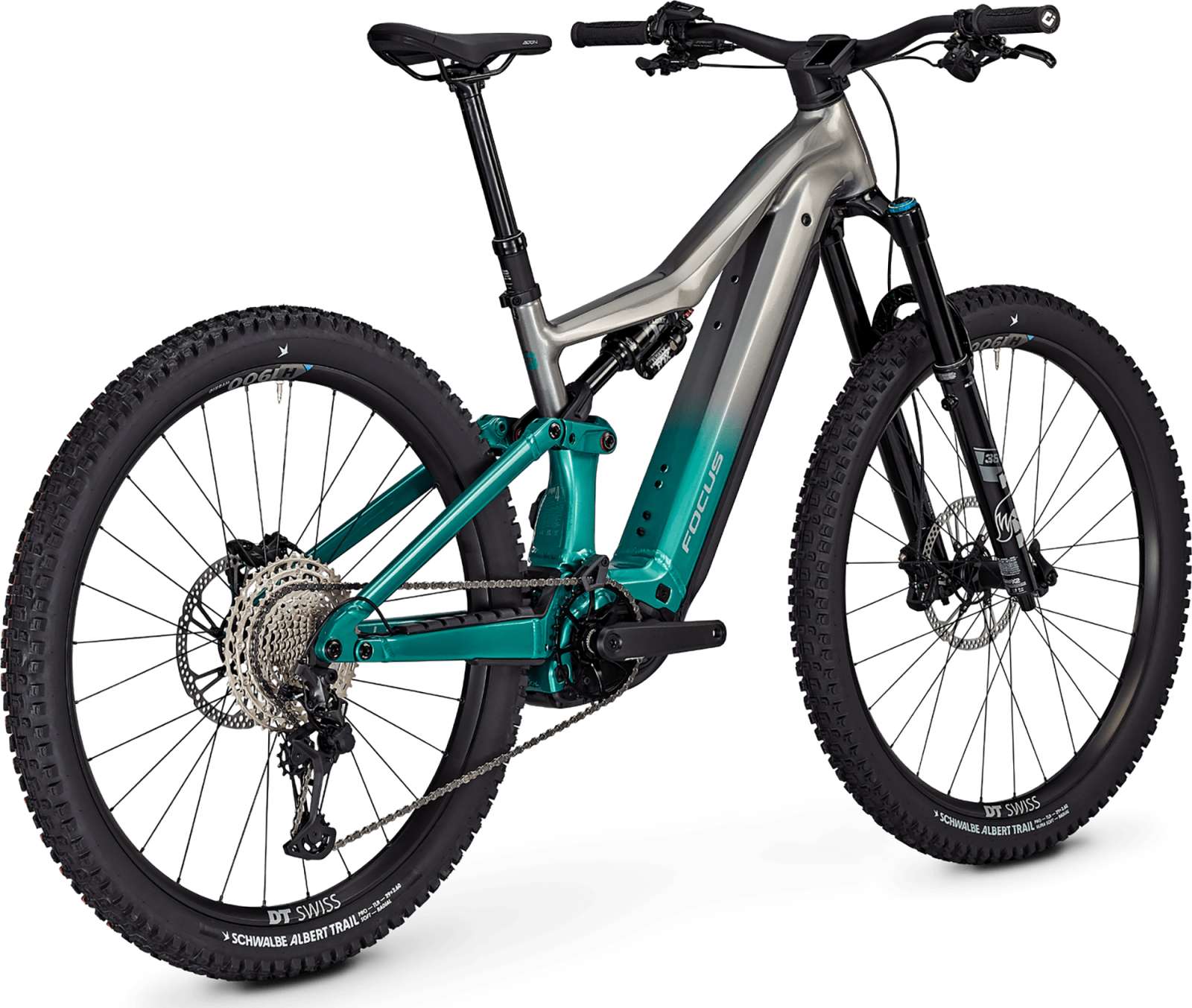

If there was only one e-mountain bike in the world, the FOCUS JAM² 6.9 would be the one for you. It’s the manifestation of a trail bike, supercharging your confidence on any trail – up or down. With its balanced and confidence-inspiring nature, the FOCUS JAM² 6.9 bridges the gap between its FOCUS siblings on both ends of the e-MTB spectrum. If you want to feel the sensation of a Rider’s High on your home turf as well as big backcountry trail missions, then look no further.The trail bike rolling on 29″ wheels is available with either a 600 Wh or an 800 Wh battery. Both batteries fit the frame with only a different down tube cover – no modification needed. Also, all frames in all sizes are compatible with the 250 Wh range extender, leading to four possible battery configurations from 600 to whooping 1050 Wh. The FOCUS JAM² 6.9 is your e-MTB for unlimited trail fun, up and down.
Features – Focus JAM² 6.9
Aluminium frame with Bosch Performance Line CX e-drive 800 Wh battery
FOX 36 Performance Elite GRIP X2 fork & FOX FLOAT X Performance shock
All the playfulness you need for a massive grin
The balanced geometry of the JAM² 6.9 gives you unlimited trail fun, up and down. It handles intuitively downhill, while uphill you can tackle any climb thanks to even weight distribution and plenty of traction on the front wheel. Countless hours of test riding have gone into the specific tune of the JAM² . As a result, the JAM² 6.9’s shock tune is as firm, reactive and sporty as it gets without compromising on traction. You can find the recommendations for the perfect suspension set-up in the FAQ on the JAM² family page.
Full controll when things get dicey
If you ride the JAM² 6.9 hard, close calls are unavoidable. Soft, 2.6-inch-wide trail tyres with a strong casing and powerful brakes paired with 200 mm brake discs enable you to ride at full speed with peace of mind. And even off the trail, you have full control and always know where your bike is thanks to the integrated mounting options for an Airtag or Chipolo.
The battery size that’s right for you
The JAM² 6.9 is available with both the compact 600 Wh battery and the larger 800 Wh battery. Both are removable and differ only in appearance, with a larger cover for the down tube. Please ask your local FOCUS dealer for more information. In addition, the JAM² 6.9 is compatible with the 250 Wh range extender in all sizes. That adds up to four battery configurations ranging from 600 to a whopping 1050 Wh. This means you’ll always have enough juice for the renowned and reliable Bosch Performance Line CX e-drive – and maximum trail fun.
Unlimited trail fun, up and down If there was only one e-mountainbike in the world, the JAM² would be the one for you. It is the epitome of a trail bike that will boost your confidence on every trail – uphill and downhill. With its balanced nature that boosts your confidence, the JAM² bridges the gap between its FOCUS siblings at both ends of the E-MTB spectrum. If you want the feeling of a rider’s high both on your home turf and on big backcountry trail missions, then look no further. The JAM² is your E-MTB for limitless trail fun, uphill and downhill.
Choose the right battery for your trail fun More battery is not always better. At least that’s what Focus think. But this much can already be said: The JAM² offers more than enough options of battery capacity that you can focus on trail fun entirely. Focus chooses compact 600 Wh battery, pivot battery removal and a slim silhouette as the main design for the JAM².
Renowned reliable Bosch Power Gen. 5 of the Bosch Performance Line CX motor is as reliable as ever – if not more so. You probably have a pretty good idea of what you can expect already. The Bosch Performance Line CX has your back in every situation. So that nothing, not even rattling noises on trails, can stand in the way of your peace of mind and maximum trail fun. And of course, everything is Smart System compatible and all JAM² models come with a proper display.
Premium Look Oh, that’s not a carbon bike? You are probably not alone in realising this if you have only looked at the sleek cockpit section. With ground and levelled weld seams in the head tube area and around the semi-integrated shock mount, the JAM² and its upcoming siblings, the new THRON² and FOCUS SAM², could easily be mistaken for carbon bikes. Add the elegant two-tone metallic paint finish including a painted main link as well as the C.I.S. 2.0 stem and voilà, the JAM² is ready and above all très chic!
Details that matter and make it Focus has also thought of the many important details with the JAM². The particularly thick chainstay guard makes the bike quieter than ever. The motor cover is impressively robust. Ho wever, the JAM² has so much ground clearance anyway that the bike testers had difficulty finding sufficiently large steps for the test at the limit. Plus, the cover for the charging socket on the seat tube does not flap.
Das neue JAM² | UP YOUR GAME ON ANY TRAIL | FOCUS Bikes
7005 hydroformed aluminium, 150 mm F.O.L.D. kinematics, 148×12 mm thru axle, Post Mount 180 mm
Frame material:
aluminium
Wheel size:
29″
Speeds:
1 x 12
Colour:
Steelgrey / Emeraldgreen
Fork:
Fox 36 Performance Elite, Grip X2, 160 mm
Rear Shock:
Fox Float X Performance, 150 mm
Travel:
160mm / 150mm
Brakes:
TRP DH-R EVO Pro, 4-piston
Brake discs:
TRP RC03E, front: 203 mm / rear: 203 mm
Headset:
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated
Stem:
FOCUS C.I.S. 2.0, 40 mm
Handlebar:
Alloy, width: 800 mm, rise: 30 mm
Bar grips:
ODI Elite Pro
Saddle:
fi’zi:k Aidon X5
Seatpost:
Post Moderne DP-212, S / M /L / XL: 125 / 170 / 170 / 200 mm, 34,9 mm
Crankset:
Samox, 165 mm, Samox, 36 T
Rear derailleur:
Shimano Deore XT, 12-speed
Gear shifters:
Shimano Deore
Chain:
Shimano CN-M6100
Front tyre:
Schwalbe Albert, Super Trail, ADDIX Ultra Soft, 29 x 2,6″
Rear tyre:
Schwalbe Albert, Super Trail, ADDIX Soft, 29 x 2,6″
Wheelset:
DT Swiss H 1900, alloy, 29″
Display:
Bosch Kiox 300 + LED Remote
Battery:
Bosch PowerTube Li-Ion, 800 Wh
Engine:
Bosch Performance CX Gen5 Smart System, 85 Nm
Other details:
Tool bag (exluding size S & M), Hidden AirTag or Chipolo holder
Maximum total weight allowed:
150 kg (body weight + bike + equipment)
Weight:
starting from 26,3 kg
Drivetrain
What components does the smart system from Bosch consist of?
Bosch Drive Unit Performance Line CX Motor Generation 5
The Performance Line CX Gen.5 (BDU384Y) motor takes riding dynamics and agility to a new level. It is powerful, light and quiet. Ten years of experience and countless trail rides around the world have gone into its further development. The Performance Line CX motor combines power, dynamics, efficiency and reach. 85-600-340: 85Nm max. torque, 600W max. motor power, 340% max. support factor. These values represent the ideal balance between performance and riding pleasure in relation to wear and tear and range.
Powerful uphill
The maximum torque of 85 Nm has a noticeable effect on your riding performance when eMountain biking. The powerful motor enables powerful acceleration after tight bends and obstacles at a low cadence and simplifies hill starts. For fast sprints, the motor also supports you at high cadences.
Intuitive handling
One mode for more focus: The eMTB mode, specially designed for sporty use, gives you optimum control and intuitive handling, as you don’t have to switch between the different riding modes as often. With this clever eMTB mode function, technical passages can be ridden with confidence and obstacles such as roots and thick branches can be easily overcome with targeted pedal pressure using the Extended Boost. The Performance Line CX drive unit ensures even more riding fun and a flow experience that sets new standards.
Maximum agility
The multi-sensor concept enables controlled and agile riding even on technically demanding trails, combined with the innovative Bosch motor control, it stands for maximum dynamics and sensitivity.
Sporty and economical
Sporty riding on a trekking bike or eMTB: With the Tour+ riding mode of the Bosch Performance Line CX, the focus is always on riding enjoyment. It eliminates the need to switch between support modes so that you can concentrate fully on eBiking. With Tour+ mode, you pedal harder on flat stretches than in Tour mode and are more sporty on the road – the riding mode saves power and extends your radius – for even more riding fun! Trail or asphalt – Tour+ mode always suits you. Because it constantly adapts to you. Sensors on the motor measure important riding data more than 1,000 times per second, from which the Tour+ mode derives the optimum support for you. It regulates the additional power so sensitively that you not only get a natural riding experience, but also a greater range with greater power input.
Individual riding experience
The available riding modes can be individually set in the eBike Flow app so that the eBike’s riding characteristics match your own riding style or the route you have chosen. The level of assistance, dynamics, maximum speed and maximum torque of the drive can thus be flexibly adjusted to your personal needs and requirements. Intensive training or an extended eBike tour – the riding modes always offer you the right support and enable even more riding enjoyment.
The Performance Line CX responds to your input more sensitively than ever before
Bosch has reinterpreted and improved the signals from the sensors. Inertial sensors (IMU), cadence sensor, torque sensor. The new motor does exactly what you want – sensitive, controlled and direct. That’s a natural riding experience
eMTB mode and Extended Boost
You don’t need any other riding mode to get into the uphill flow. Because that’s what Bosch has developed it for. The eMTB mode reacts progressively to you and recognizes in a flash how much power you want based on your pedal pressure – dynamically, with maximum traction and always in control. With the integrated Extended Boost, all it takes is a targeted kick on the pedal and the Drive Unit pushes you effortlessly over steps and stones.
Push assist and hill start assist
Get to your destination: Helpful functions take the weight off your eMTB when you need to stop in tricky sections. With the push assist, you can easily push your eMTB, while the Drive Unit automatically adjusts the pushing speed to the gradient and surface. In addition, the hill start assist enables a controlled and high-traction start, even on steep terrain. Hill Hold is active in both cases: your eMTB stays in place and does not roll back unexpectedly.
Compatible with Bosch eBike ABS Pro
Triumph over the trail: Bosch has developed the eBike Pro for outstanding performance. ABS Pro is ideal for professional eBikers: designed for fast, sporty downhill riding and braking. You can make full use of your braking skills and still feel how the system increases performance.
Compatible with eShift from TRP
Thanks to the electric shifting solution, you can ride to the trail with maximum relaxation and maximum performance on the trail. You can decide whether eShift with TRP should shift automatically for you or whether you want to change gear yourself on varied terrain with fast maneuvers – simply at the touch of a button. With eShift, gear changes are efficient and precise.
Optional PowerMore 250 range extender
Extend the range and enjoy even longer trail fun with the water bottle-sized energy reserve. Compact and 1.5 kilograms in weight, the range extender can be easily attached to the water bottle holder. It can be combined with all batteries in the smart system. Please find out in advance whether you can use the range extender for your eBike.
Individual riding modes
A natural riding experience is individual – with the eBike Flow app, you can create a riding mode to suit your needs. Your trail, your riding experience, your mode: With the help of four parameters, you can easily adapt the riding modes to your needs using the slider in the eBike Flow app. Support, dynamics, maximum torque and maximum speed – you decide what you need.
Powder-coated. Robust right up to the tips
The housing is made of magnesium – robust, corrosion-resistant and hard
The sealing concept prevents splash water from penetrating
The sound of the trail – nothing else: Bosch has been able to reduce the noise generated by the gearbox. The new motor is quiet. It creates a balance between power delivery and noise development
Power. Distributed over 2.8 kilograms. The Performance Line CX is around 100 grams lighter than the previous version
Bosch eBike Flow app
Extend the eBike
Use the eBike Flow app to download new functions and updates for components such as the battery or motor and send them to your eBike via Bluetooth. This keeps it up to date and gives you more options.
Record activities
Record your tour and fitness data as soon as you set off. For iPhone users, Activity Tracking also synchronizes all data automatically with Apple Health if desired. If you take a break, the recording stops automatically.
Individualize riding modes
Customize the riding mode exactly to your needs: You can fine-tune the Eco, Tour, Sport and Turbo riding modes so that they offer you more support or consume less power.
Keep an eye on everything
Get a quick overview of everything important on the home screen. Whether battery status, remaining range, distance already ridden or next service appointment – the home screen shows you everything you need to know with constantly updated eBike data.
Bosch Kiox 300 display
Fun features
The robust display is an intelligent companion for sporty rides to determine fitness data and to optimise your training. Kiox 300 always stays up-to-date thanks to regular updates over the air and ensures optimal flow with further future offers and new features via the eBike Flow app.
Easy to read, sleek design
Small but powerful. Kiox 300 impresses not only because of its compact size, but for its colour display which ensures optimum readability by day and night. Operation via the LED remote is simple and is visually supported by animations and images. The handy display underlines the sleek eBike look and is protected against water splashes and dust.
Helpful support
An end to tedious pushing. The new Walk Assist function can be activated via the LED remote and supports the rider on particularly steep climbs. Kiox 300 provides clear, visual guidance and facilitates intuitive operation. The display also supports you before or during the ride by clearly showing you the remaining range for all riding modes. This allows you to better assess which riding mode can be used to reach your destination.
Positioning as desired
The display mount allows for centralised positioning of the display on the handlebar and is adjusted as per your personal preference. The tilt angle of the display can also be individually adjusted — for optimum readability during the ride.
Bosch LED remote
Optimal readability
For less distraction and more safety. All important information can be captured quickly and easily thanks to the LED remote. The LEDs are also highly visible in sunlight, and the brightness of the display adapts flexibly to the ambient light: This means that readability is maintained even in changing light conditions and you are never dazzled. You can also quickly recognise the selected riding mode by the respective colour.
Smart connectivity
Greater flexibility, comfort, and safety: The LED remote connects the eBike with the eBike Flow app. This enables you to call up all important riding data, such as the duration of your ride or the distance covered, using your smartphone and to share this with other users. It is also possible to carry out software updates independently.
Smart Walk Assist
Even on the steepest of trails, when riding is no longer an option, you can push your eBike more easily with the help of Walk Assist: Simply press the minus button, move the eBike and you will already feel the support. The LED remote also acts as your guide, making handling easier for you. Walk Assist is especially helpful when eMountain biking in challenging terrain.
Ergonomic handling
The LED remote can be individually adjusted to you and, in addition to an attractive design, boasts optimal ergonomics and intuitive operation. Thanks to the ergonomic ‘L’ design, the LED remote can be attached to the handlebar so that you can reach and operate all buttons perfectly with your thumb.
Sustainably on the move
Reach your destination safer and more sustainably: The long-life rechargeable battery of the LED remote means that you can rely on the control centre on every single eBike ride. If the battery does ever need to be replaced, it can be ordered by a specialist dealer because the next route is already waiting to be discovered!
Bosch PowerTube 600 / 800
Maximum range
With the PowerTube 600 / 800, long distances and many meters of altitude are easy to master.
Stylish eBike design
Like all Bosch PowerTubes, the PowerTube 600 / 800 is perfectly integrated into the frame. An attractive eBike design and high capacity – a combination without compromise. A new, lighter housing has been used for the battery. Provided the eBike manufacturer has prepared the eBike for this, it can be easily replaced – for more or less range.
Reliable energy supplier
High safety standards. Enormous mileage, long service life, reliable handling – the lithium-ion battery is equipped with a battery management system that protects the battery cells from overload.
User-friendly handling
The PowerTube 600 / 800 is characterized by particularly easy handling. The battery is always securely anchored in the frame on all tours, removal is via an intuitive, lockable mechanism and offers you user-friendly operation.
