cube editor hybrid slt 400x goblin´n´glossy

Bike, E-Bike, E-Bike Cross, Men

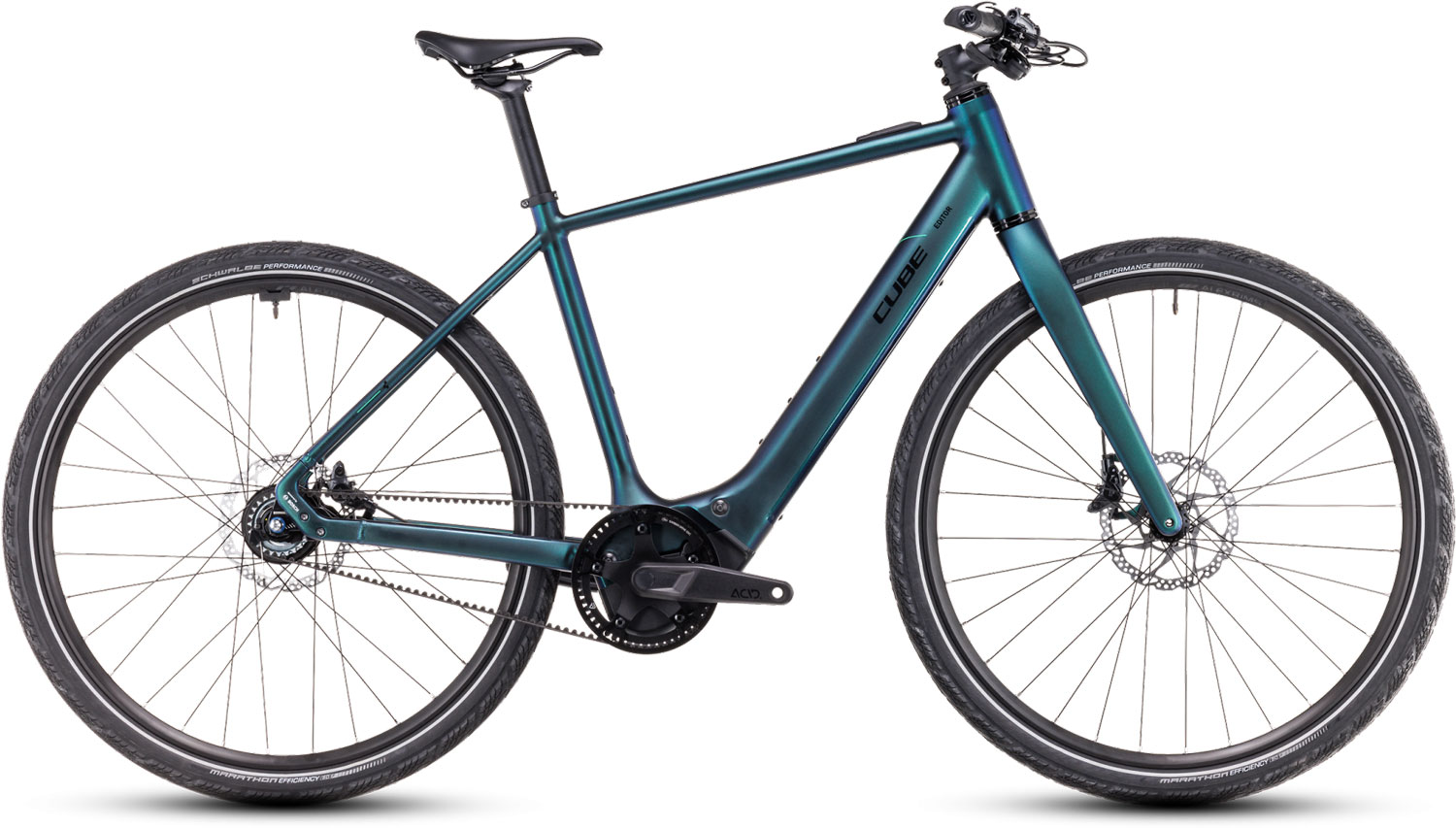

Cube Editor Hybrid SLT 400X goblin´n´glossy

1.799,00 €

& Free Shipping

Size

Clear

SKU: N/A Categories: Bike, E-Bike, E-Bike Cross, Men Brand: Cube

Cube Editor Hybrid SLT 400X goblin´n´glossy

Appearances can be deceptive. Beneath the CUBE Editor Hybrid SLT 400X’s understated, clean lines lurks a sophisticated modern transport solution with your name written all over it. Featuring a built-in 400Wh battery and mini controller for the lightweight Bosch SX drive unit, we chose a maintenance-free and clean Gates belt drive and Shimano’s 11-speed Alfine hub gears for the ultimate in get-on-and-go ease of use.

Open 360° view

Powerful Shimano Cues hydraulic disc brakes give you all the stopping power you need in any weather, delivered to the road via Schwalbe’s wide and tenaciously grippy Marathon Efficiency 50mm tyres. With the lightweight full carbon fork, it’s practically an e-bike superhero in disguise.

FRAME Cube Editor Hybrid SLT 400X

A practical urban bike should be elegant, understated and versatile. That’s why, for the Editor Hybrid’s frame, CUBE has started with lightweight and durable aluminium and then added Smooth Welding at the main tube joints – so it has a clean, almost organic appearance. Cables are fully integrated for longer service life and to complement the uncluttered aesthetic, and they´ve even integrated the 400Wh battery in the down tube and mini controller in the top tube. And the full carbon fork is light, strong and suits the frame’s pared-back aesthetic. We think we ticked all the boxes.

Technologies

Smooth Welding
Smooth Welding isn’t easy, but worthwhile things usually aren’t. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.

Efficient Comfort Geometry
With the specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you’re popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, CUBE has created a ride experience that will have you coming back for more.

Advanced Internal Cable Routing
Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? CUBE has come up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

Fender & Rack option
A gravel bike is a supremely versatile beast, which is why all gravel models have a fender and rack option. With generous frame clearances to fit comfortable, safe and grippy tyres even with full length mudguards, CUBE has also neatly integrated the rear rack into the mudguard design – and included a rear light, too.

Fixed Integrated Battery
Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, the new battery has been fully integrated into the down tube. This means that it has been positioned optimally for the best weight distribution and handling. In addition, it saves more weight as the down tube is fitted to exactly the right size and no access hatch is required. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It’s the best of both worlds.

Carbon fork
How important is material choice? When it comes to the fork that holds your front wheel, more important than you might think. Not only is our Carbon Fork exceptionally light and strong, it’s also surprisingly comfortable to ride. And, when you’re weaving your way through city streets, those are all qualities that you’ll appreciate.

Front Carrier Ready
Carrying your belongings, shopping or work bag just got a little easier. The new HIC (Headset Integrated Carrier) fits simply, neatly and very securely on the front of your CUBE bike to add accessible, stable and versatile load-carrying capacity. With the ability to safely accommodate a Eurobox of 300mm x 400mm, up to 20kg in weight and RILink accessories, you’ll wonder how you managed without.

Aluminum Superlite
CUBE’s Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Manufacturer item no.: 823300
EAN: 4054571465849
Model year: 2025
Manufacturer:
Pending System GmbH & Co. KG
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt

Size	56cm, 58cm, 60cm, 62cm

Specifications

Configuration

Frame:	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fixed Integrated Battery, Advanced Internal Cable Routing, Slider Dropout
Frame material:	aluminium
Wheel size:	28″
Speeds:	1 x 11
Colour:	goblin´n´glossy
Fork:	CUBE Editor Full Carbon, 1 1/8″ – 1 1/2″ Tapered, Internal Cable Routing, 12x100mm
Brakes:	Shimano Deore BR-M6000, Hydr. Disc Brake
Brake discs:	180 / 180 mm
Stem:	CUBE Performance Stem Pro, 31.8mm
Handlebar:	CUBE Rise Trail Bar, 680mm
Bar grips:	ACID Hybrid Tour
Saddle:	Natural Fit Venec
Seatpost:	CUBE Performance Post, 30.9mm

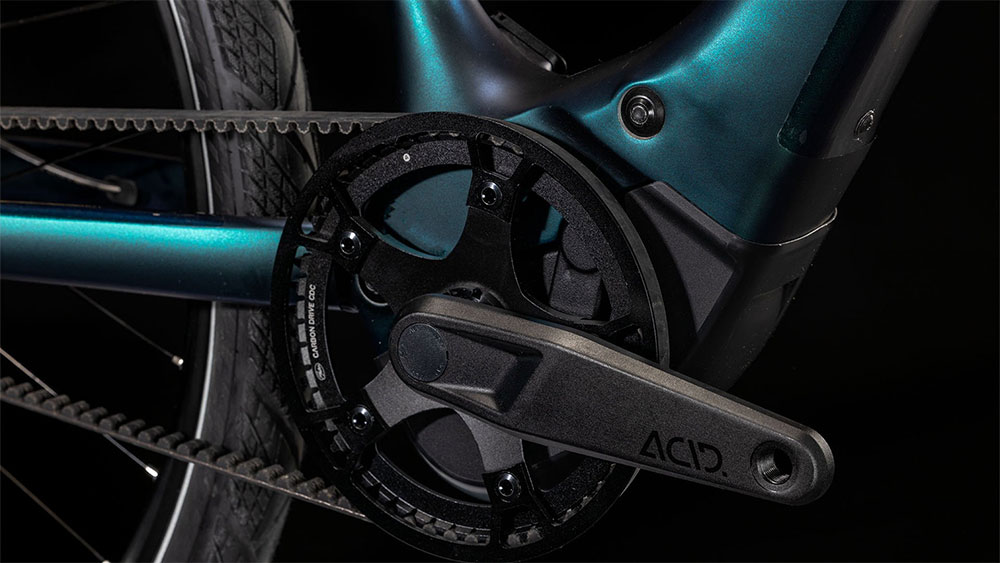

Crankset:	ACID MTB Hybrid Pro, 52T
Gear shifters:	Shimano Alfine SL-S700

Cassette:	Gates Rear Sprocket CDC, 24T
Chain:	Gates CDC, 125T
Tyres:	Schwalbe Marathon Efficiency, RaceGuard, 50-622
Front hub:	Shimano Tiagra HB-RS470, 12mm, Centerlock
Rear hub:	Shimano Alfine SG-S7001, 11-Speed
Rims:	CUBE EX21, 32H, Disc, Tubeless Ready
Display:	Bosch System Control, incl. Mini Remote
Battery:	Bosch CompactTube 400
Charger:	Bosch 4A
Engine:	Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Pedals:	not included
Maximum total weight allowed:	115 kg (body weight + bike + equipment)
Weight:	17,7 kg

Drivetrain

The new Bosch Performance Line SX Smart System motor

When muscle power and electric support work in conjunction and you get top performance exactly when you need it: With the Performance Line SX, we are launching a sporty drive unit that is lighter and more compact than anything we have developed so far. For light eMTBs, eGravel and eUrban bikes.

Features

Off to a fast start
Whether light eMTB or eGravel, a high cadence is rewarded. On rugged terrain or from traffic light to traffic light on your eUrban bike.

New kind of eBiking
Start pedaling and feel the support: sensitive, quiet, direct. A natural riding sensation combined with the benefits of the eBike.

Stylish and inconspicuous
Lightweight, slim, beautiful eBikes: The compact Performance Line SX drive unit disappears into the frame of light eMTBs, eGravel or eUrban bikes.

Light and powerful
The Performance Line SX is extremely light and remarkably quiet. If you have a sporty riding style, it drives you forward unobtrusively but with noticeable power.

Up to 600 watts: Maximum power in the most compact space
Approx. 4.4 lbs : The lightest drive, inconspicuously installed
Max. 55 Newton meters: Pedal fast, get powerful support
Sprint mode: For sporty eGravel and eUrban riding

Optimum setup for lightweight and slim e-bikes

For sporty riding
Pedal faster, pick up speed even faster: The Performance Line SX works at least as hard as you do. When riding in a sporty style with a high cadence, it supports you disproportionately to your performance with peaks of up to 600 watts of motor power. With its sensitive and reactive response behavior, it is ideal for all those who ride in sporty style with electric support and are looking for a training effect.

Lightness – almost natural
A reduced pedal resistance of more than 50 percent compared to the Performance Line CX, a narrower design of the cranks and an almost silent motor – the Performance Line SX convinces in many respects. Its direct but sensitive response conveys the feel of conventional cycling and enhances it with the ease and fun of eBiking.

Light, compact, agile
Around 4.4 lbs: The Performance Line SX is our lightest drive with the highest power density. Ride your eGravel bike dynamically into corners and carry your eUrban bike up to the fourth floor: The Performance Line SX reduces the total weight of your eBike, delivers greater agility and is ideal for fans of a sporty riding style. In addition, the compact drive unit disappears elegantly into the crank area of your eBike – so it looks like a conventional bike.

Multifaceted: sporty riding
You’re looking for a challenge on the trail, on technically demanding passages and when riding uphill? Installed in light eMTBs, the Performance Line SX is the optimal piece of training equipment for you. But even if you’re dreaming of long-distance adventures and don’t yet know exactly which surfaces await you, the drive unit is ideally suited for powering eGravel bikes. You want to ride dynamically on the road with minimalist, agile eCity bikes? Here, too, the Performance Line SX is the right choice.

Sprint mode
Dynamic support according to the cadence – for fast sprints and steep climbs.

dynamic support with up to 280% of your own power – the faster you pedal, the stronger the drive supports you
for sprints, steep climbs or for fast commuting
ideal for eGravel and eUrban bikes
individually adjustable via the eBike Flow app

Performance Line SX Explanation video

System	The smart system
Shift type	Derailleur/hub gears*
Max. Support level (%)**	340 %
Maximum possible drive torque (Nm)	55 Nm
Starting behavior	sensitive
Max. Support up to	25 km/h
Backpedal function	no
Smart push assist with rollback protection	Yes
Shift detection	no
Weight	approx. 2.0 kg
Nominal continuous power	250 W
Maximum power	600 W
Max. Power at a cadence of 70 rpm	400 W
Max. weight-related power	approx. 300 W/kg

Bosch eBike Flow app

Enhancing the eBike
Use the eBike Flow app to download new features and updates for components such as the battery or motor and send them to your eBike via Bluetooth. That way it’s always up to date and you get to enjoy more options.

Recording activities
Track your ride and fitness data as soon as you get started. If desired, the Activity Tracking for iPhone users can also sync all data automatically with Apple Health. When you take a break, the recording stops automatically.

Customising riding modes
Adjust the riding mode exactly to your needs: You can finely adjust the Eco, Tour, Sport and Turbo riding modes so that they offer you more support or consume less power.

Everything at a glance
Use the Home screen to gain a quick overview of everything that’s important. Whether battery status, remaining range, distance travelled or the next service appointment, the Home screen clearly shows you everything you need to know with constantly updated eBike data.

System Controller and Mini Remote

	Simple operation Focus completely on the traffic in the city or on your ride.
	Robust functional companion The System Controller is perfect for modern eCity bikes or eMTBs.
	Constant extensions Connect your smartphone to the System Controller and benefit from new features via the eBike Flow app.
	Minimalistic look System Controller and Mini Remote have an unadulterated and clean eBike look.

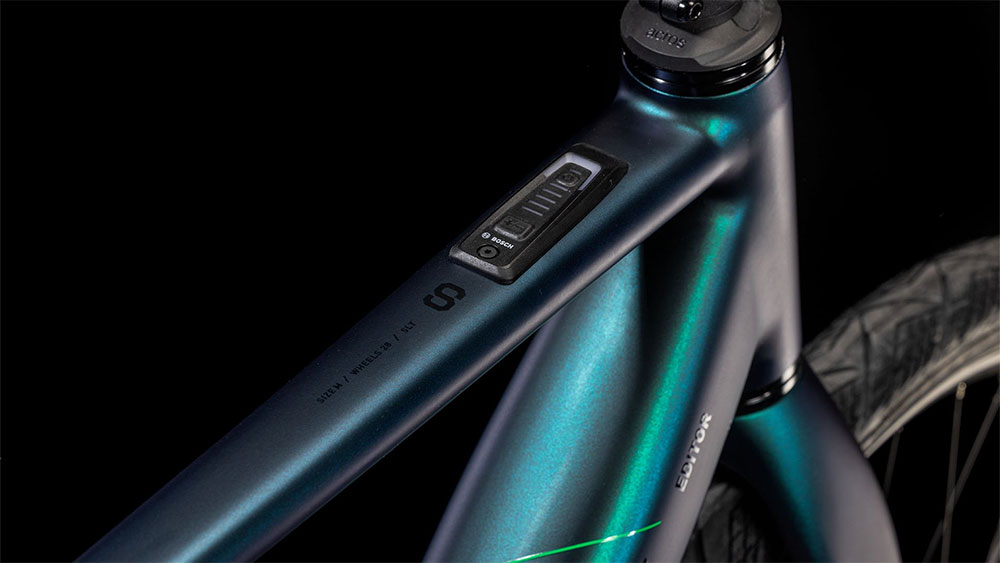

System Controller

Minimalist, robust Control Unit
The System Controller is the Control Unit for eBikes with the smart system, reduced to the essentials. The deliberately limited number of functions and information facilitates a quick overview and is not distracting while riding. The System Controller is seamlessly integrated into the top tube – this gives the already robust companion additional protection, is hardly noticeable and is perfect for sporty tours and design-oriented eBike fans.

LED indicators
LEDs use different colors to indicate the riding mode as well as the battery charge level in 10 % steps.

Connected in the smart system
The System Controller makes your eBike smart – and is the interface for software updates.

Built into the top tube
The System Controller is hardly noticeable, made of sturdy material and protected from knocks and scratches.

Two buttons
With only two buttons you control the most important functions of your eBike: turn your eBike on or off and change the riding mode.

Hardware Facts

The bottom five LEDs indicate the charge level
The large LED indicates the current support level through its colour: red, violet, blue, green
Expandable with Mini Remote for additional functions and more convenient operation
- Modular use: The System Controller can be used in conjunction with the Mini Remote to control the eBike Flow app and Bosch display while riding
- Use of the Pust Assist via the Mini Remote and display of the status by rolling illumination of the charging status LEDs on the System Controller (white = Push Assist ready; ice blue = Push Assist active)
- Switching light on/off
Ambient light sensor automatically adjusts the brightness of the LEDs
Two-component design: combination of soft-touch surface and hard material for best ergonomics and robustness
Replaceable and long-life battery lasts up to approx. 7 years
Display of ABS function via ABS LED (only for eBikes with Bosch eBike ABS)
Diagnostic interface (type: USB-C) for diagnosing the eBike system or charging the integrated battery of the system controller
System connector for connecting the eBike system
IP54 protected against dust and splash water
Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)

Mini Remote

Bosch Mini Remote

As an additional operating panel, the Mini Remote supplements the System Controller, extends the range of functions and enables safe operation. It is connected to the System Controller via Bluetooth and can be flexibly mounted on the handlebar. The buttons near the thumb keep the hands on the handlebar at all times. More keys offer more functions: with the Mini Remote you get practical features like the smart Push Assist and you can turn your eBike light on or off.

Quickly retrofittable
The Mini Remote can be quickly retrofitted and is connected to the System Controller via Bluetooth.

Three keys, more functions
The keys of the Mini Remote have dual assignments: riding mode, light function, smart Push Assist, and for controlling a display.

Full flexibility
The Mini Remote works with or without display. Operate the Ride screen of the eBike Flow app or your display screens.

Intuitive operation
Short distances for the thumb and grippy soft-touch surface: The buttons have icons and can be used intuitively.

Hardware Facts

Supplement to the system controller for additional functions and convenient operation on the handlebar
- Control of the navigation or ride screen in the eBike Flow app (smartphone) or the Bosch display
- Smart Push Assist and innovative rollback protection (supports on steep, non-rideable inclines and can prevent the eBike from rolling backwards)
- Switch light on/off
Optimal ergonomics of the buttons due to low profile design
Wireless mounting on the handlebar
Soft touch surface for extra good grip
LED indicates low battery of the Mini Remote, pairing activity or lack of connection to the system
Battery life (coin cell CR1620) can last up to approx. 2 years and can be easily replaced by removing it from the handlebar and inserting it into the rubber insert
IP54 protected against dust and splash water
Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)
Bluetooth connectivity (Bluetooth 5.0 Low Energy)

CompactTube 400

Slim, integrated, compact, and with 400 watt hours at a weight of just around 4.4 pounds, it’s a real energy champion: the CompactTube 400 with innovative battery cell technology offers the highest energy density of all Bosch eBike batteries. This makes the extra-light battery the ideal choice for performance light eMTBs, minimalist gravel eBikes or design-oriented urban eBikes – this battery is for anyone who loves the sleek look of conventional bikes and wants electric support.
